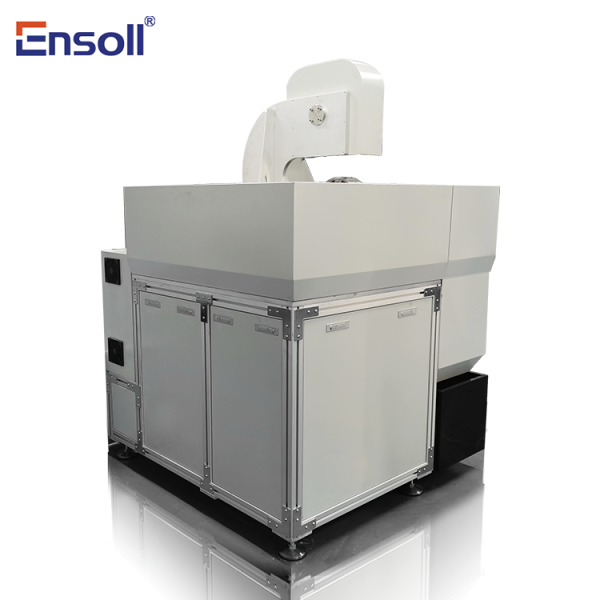

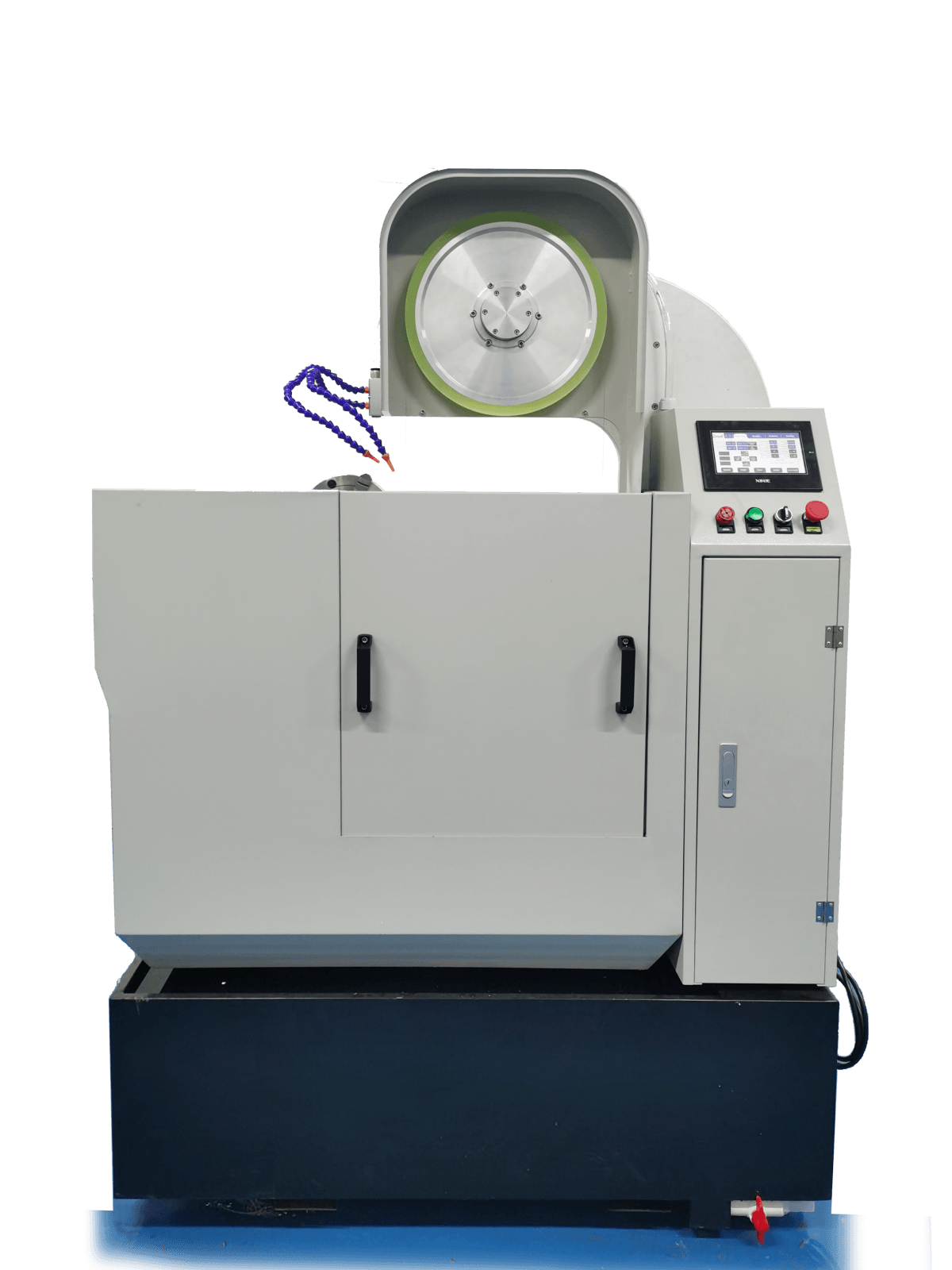

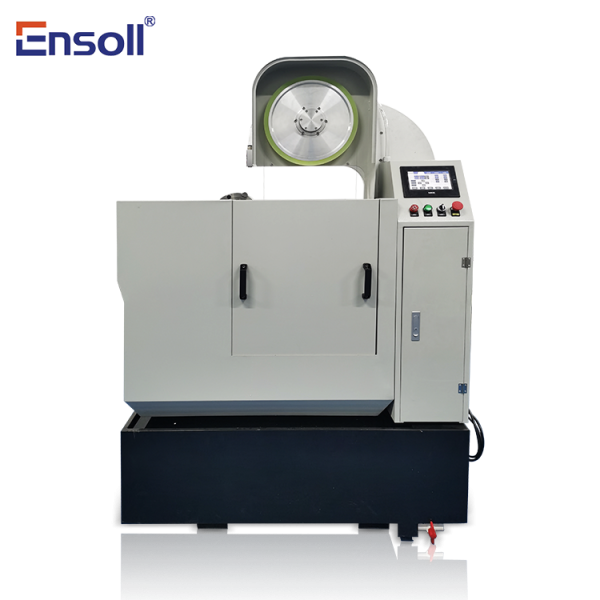

ESV350-2T Endless Diamond Wire Saw
(If you need a rotation axis, we can customize and upgrade it for customers to add a rotation axis, in order to achieve rotation cutting function!)
Brief Introduction
Wire Saw machine model ESV350-2T was produced by Zhengzhou Ensoll Tools, uses diamond wire loop as cutting tool. The linear speed is 3 to 4 times of traditional wire cutting. The cutting speed is fast and it is easy to operate. The cutting equipment is suitable to cut almost all kinds of material such as glass, rock, jade, silicon, ceramics and so on, especially for cutting high-value hard brittle materials .
There are 2 guiding wheels on this machine ,wheel diameter is 400 mm. the linear speed can be upto 60 m/s.
ESV350-2T Endless Diamond Wire Saw is vertical type , the cutting surface can be very nice with a rotary head,Contact us to get more info about our diamond wire saw.
Parameter
| Machine Size | 1275*1230*2000mm(L*W*H) |
| Machine Weight | 500Kg |
| Electric | 220V |
| Power | 2KW |
| Motor Speed | 2800RMP |
| Positioning Accuracy | ±0.03mm |
| Wire Length | 3090mm |
| Max Linear Speed | 60m/s |
| Loading Table Size | 360*500mm |
| Loading Capacity | 400Kg |
| Feed Length | 350*350mm(X*Y axis) |
| Cutting Thickness | 0.1-350mm adjustable |
| Max Cutting Size | 350*350*350mm(L*W*H) |

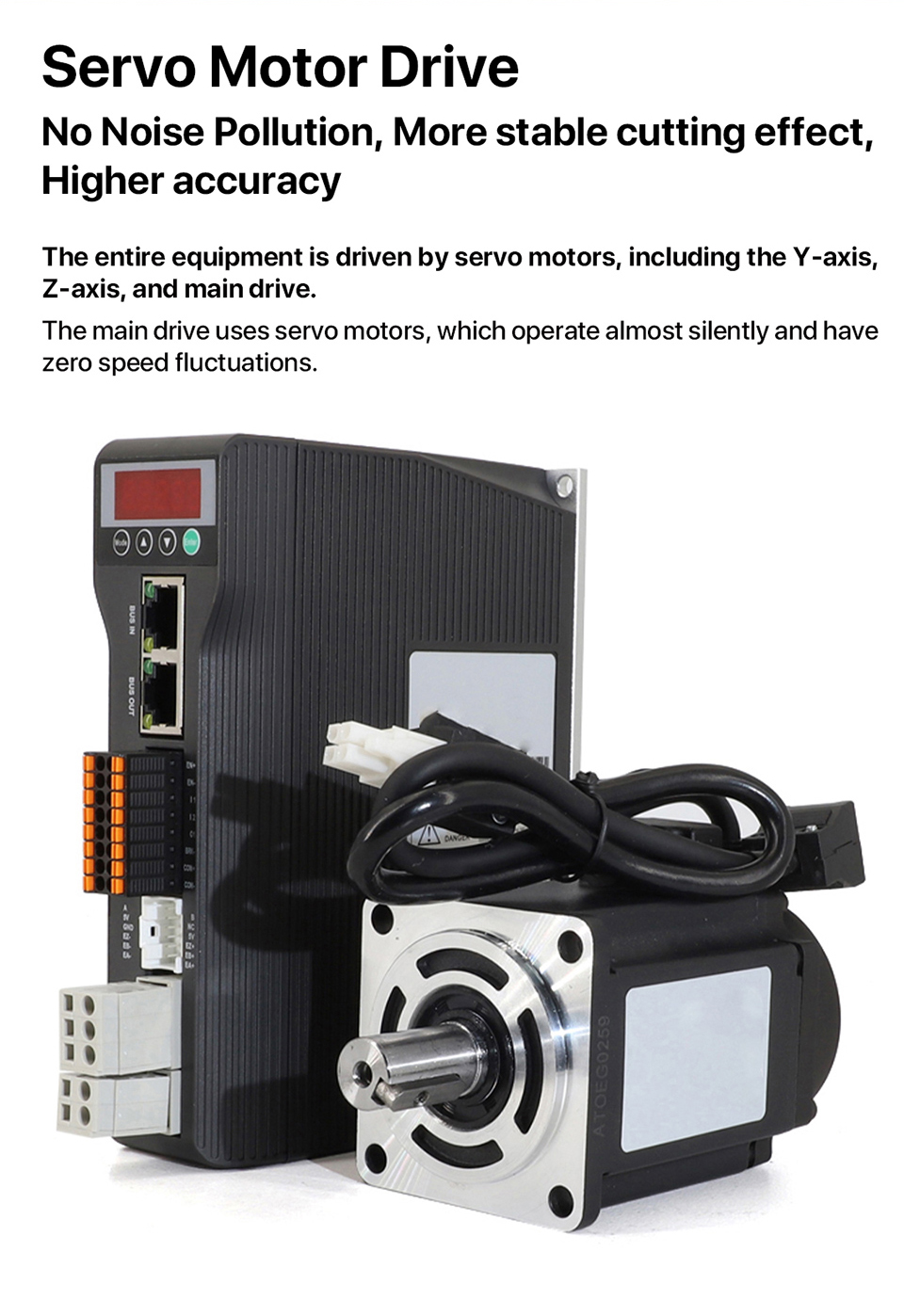

| Feed Method | Servo |

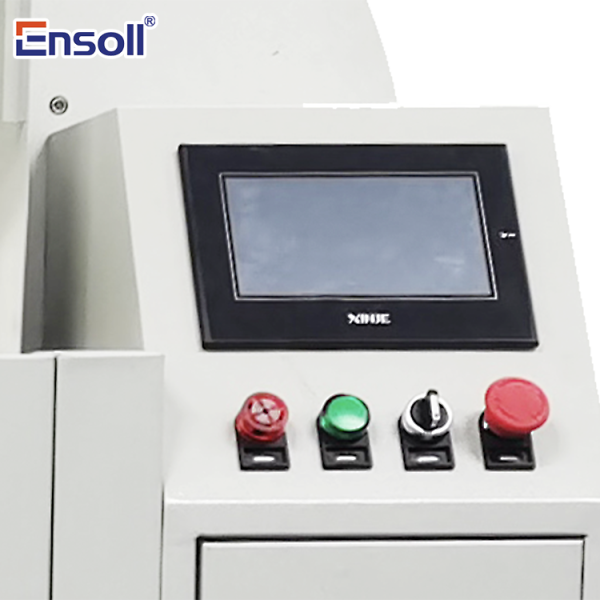

| Control System | PLC(Siemens) |
Product Features

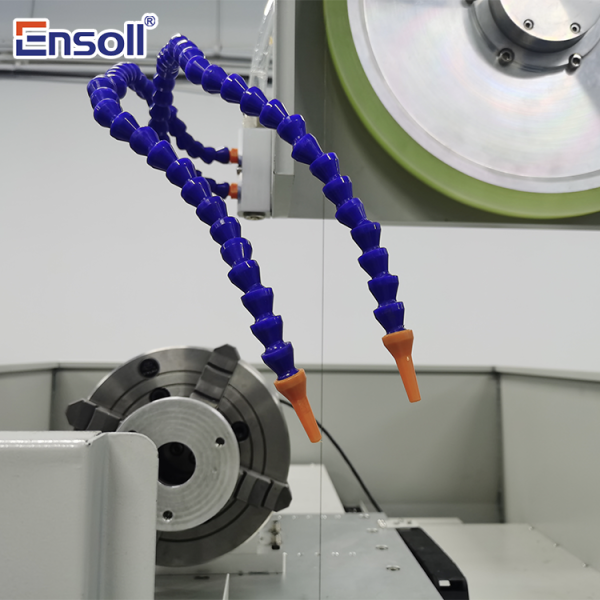

- Various clamping methods are available,Rod material clamping、Rotary clamping and Special-shape material clamping.
- The fuselage is waterproof which can do wet cut.

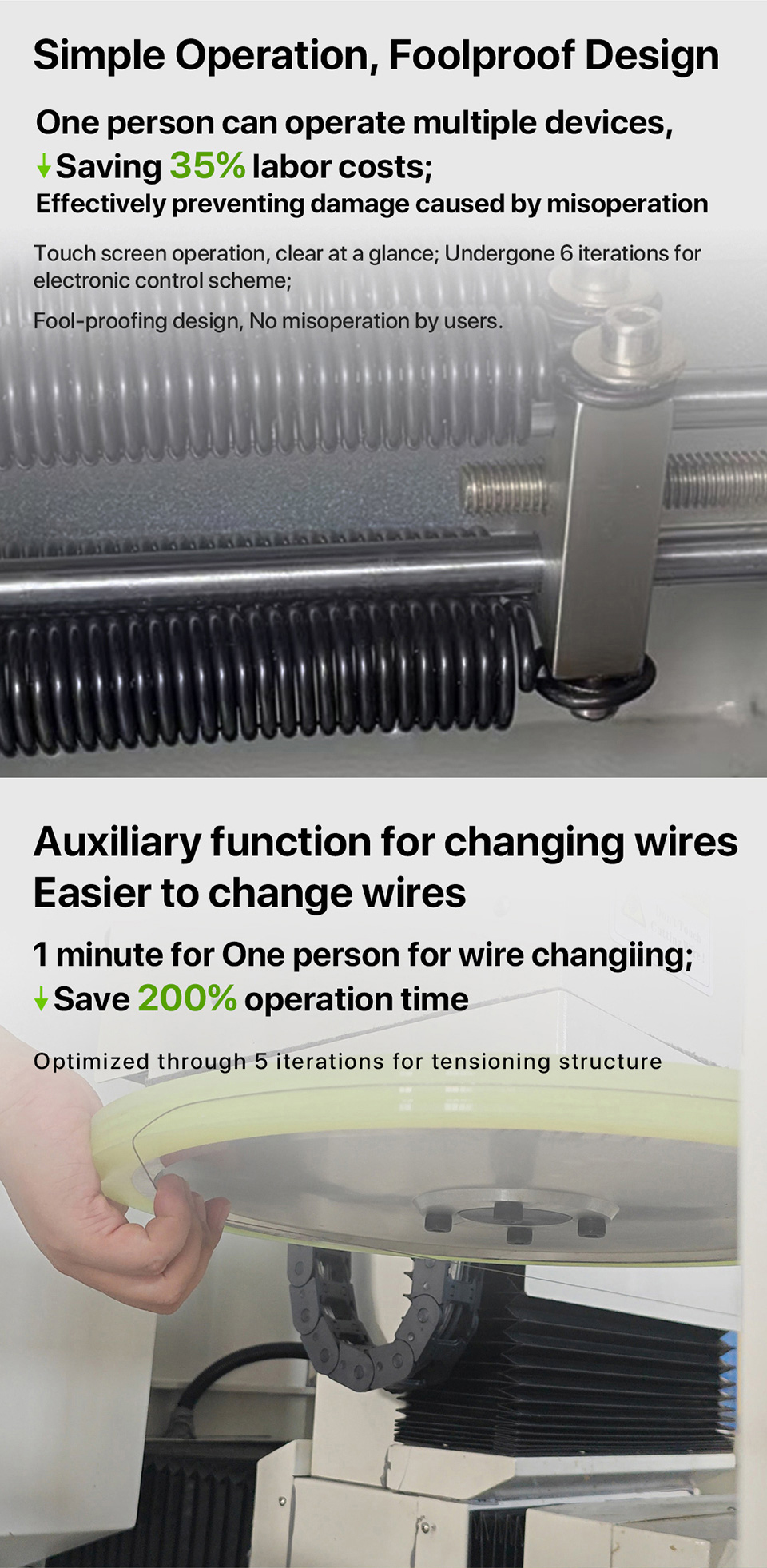

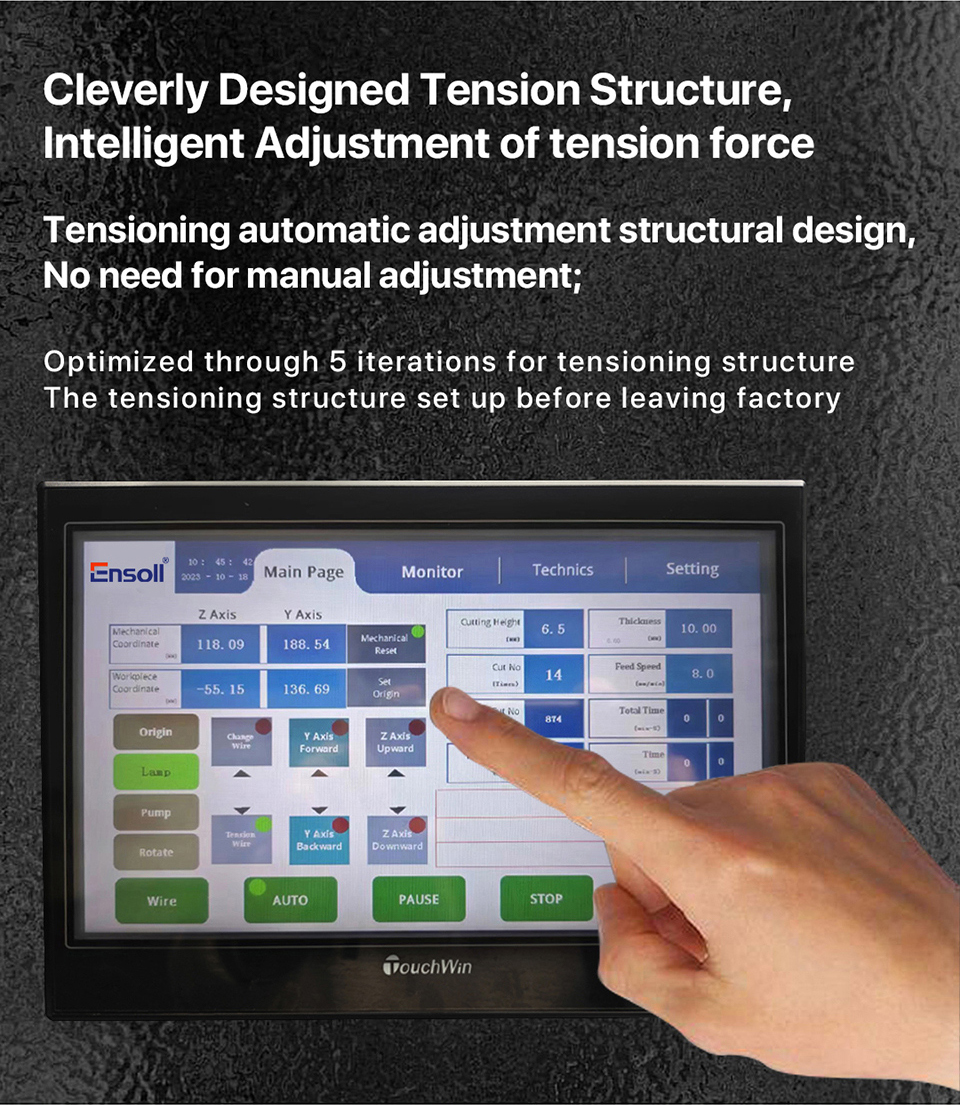

- The tensioning system adopts adaptive tensioning system, there is no need to make tension force calculation.
Application of ESV350-2T

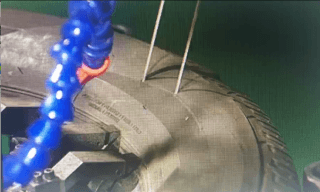

Tire Section Cutting—The cutting surface was clear and smooth, even the parts with steel wire was cut off quite flat .There is no need to do secondary grinding.

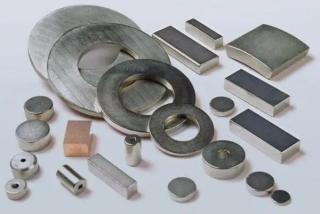

Magnetic metal—NdFeB,ferrite,samarium cobalt,alnico and other metal and non-metallic magnetic materials processing,the equipment has high safety,simple operation,large single cutting volume,whoes effiency is several times that of ID saw.

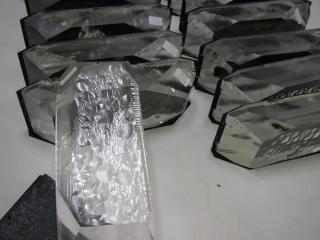

Artificial crystal—The cutting speed of crystal materials such as optical glass is fast, and the cutting surface is smooth and flat, replacing grinding with cutting!

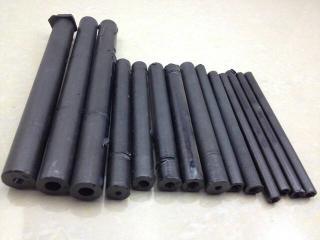

Graphite precision cutting—Small pieces of graphite or similar materials can be cut into pieces with one machine,and the equipment tolerance is 3 wires,which is very suitable for precision processing.
In addition, our cutting equipment can also be used for cutting Various metal and non-metallic composite materials, glass, rock, jade, monocrystalline silicon, silicon carbide, ceramics Epoxy board and other materials, especially suitable for cutting high priced and easily broken high hard brittle materials!If you have material cutting needs, you can contact us!
Accessory
Guiding wheels——This Rubber Coated wheel /pulley is made for endless diamond wire saw.There are some stock model and we can also provide customized spec .The Rubber Coated wheel have several wire grooves which increase the wheel’s life time.normally there are 3 wire grooves.
We can provide all part of endless wire saw machine to support machinery company build machines including endless cutting wire ,bearing,fiangeand so on.
Diamond Wire Loop——Diamond wire loop is a kind of flexibility cutting tool, Coating diamond crystals onto the steel wire surface, mainly used for cutting hard and brittle materials, such as: sapphire, ceramic, stone, silicon, etc.
