Description
ESG400-Diamond Wire Cutting/Endless Diamond Wire Loop Saw Machine/Diamond Wire Saw Cutting Machine
Brief Introduction

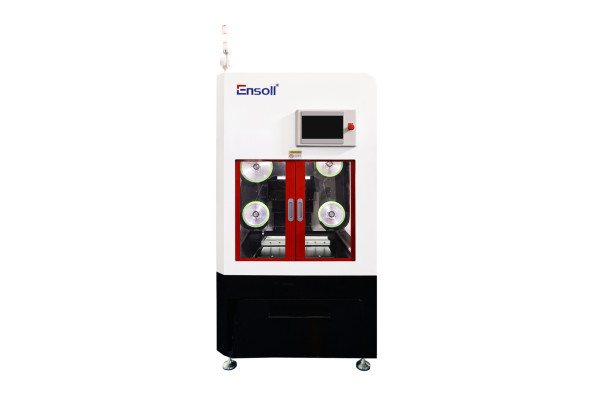

ESG400-4T produced by Zhengzhou EnsollTools Technology Co., LTD,known as endless diamond wire cutting machine(Gantry type), uses diamond wire loop as cutting tool.The machine has a rotary head which cando rotary cuts.The linear speed is 3 to 4 times of traditional wire cutting. Its cutting speed is fast and has very simpleoperation and small machine size.The cutting equipment is suitable to cut almost all kinds of material such as glass, rock, jade, silicon,ceramics ,Magnetic,Metal alloy,Graphite and so on, especially for cutting high-value hard brittle materials .

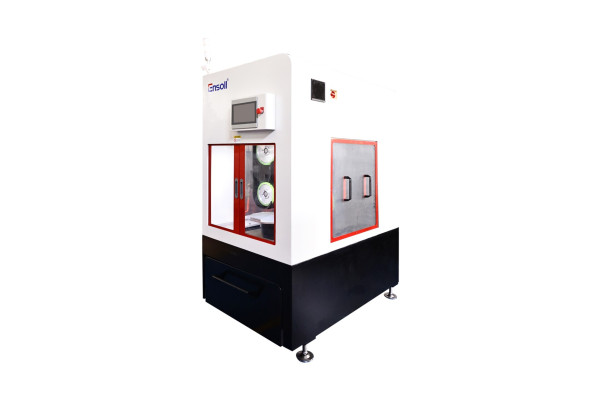

(If you need a rotation axis, we can customize and upgrade it for customers to add a rotation axis, in order to achieve rotation cutting function!)
Parameter
| Machine Size | 1003*882*1756mm(L*W*H) |
| Machine Weight | 360Kg |
| Electric | 220V |
| Power | 1.5KW |
| Motor Speed | 2800RMP |
| Positioning Accuracy | ±0.03mm |
| Wire Length | 2530mm |
| Max Linear Speed | 32m/s |
| Loading Table Size | 500*600mm |
| Loading Capacity | 200Kg |
| Feed Length | 400*400mm(Y*Z axis) |
| Cutting Thickness | 0.1-400mm adjustable |
| Max Cutting Size | 400*400*400mm(L*W*H) |
| Programmable Controllers(PLC) | SIEMENS |
| Feed Method | Stepping |
| Wheel Number | 4 wheel(230mm) |
Product Features
- Vertical cutting method.
- The cutting material size is increased.
- The fuselage is waterproof which can do wet cut.
- The tensioning system adopts adaptive tensioning system, there is no need to make tension force calculation.
Application of ESG400-4T
The cutting speed of crystal materials such as optical glass 、quartz glass is fast, and the cutting surface is smooth and flat, replacing grinding with cutting!
NdFeB,ferrite,samarium cobalt,alnico and other metal and non-metallic magnetic materials processing,the equipment has high safety,simple operation,large single cutting volume,high precisionwhoes effiency is several times that of ID saw.
For different purity of alumina ceramics, zirconia ceramics, etc, building materials, stone, our equipment has faster cutting speed, finer slit and smooth cutting surface, less material loss!
In the high-precision processing of monocrystalline silicon and polysilicon, our diamond wire loop cutting can achieve low edge breakage rate, low roughness, smooth cutting surface and less material loss!
In addition, our cutting equipment can also be used for cutting Various metal and non-metallic composite materials, glass, rock, jade, monocrystalline silicon, silicon carbide, ceramics Epoxy board and other materials, especially suitable for cutting high priced and easily broken high hard brittle materials!If you have material cutting needs, you can contact us!
Accessory
Guiding wheels——This Rubber Coated wheel /pulley is made for endless diamond wire saw.There are some stock model and we can also provide customized spec .The Rubber Coated wheel have several wire grooves which increase the wheel’s life time.normally there are 3 wire grooves.
We can provide all part of endless wire saw machine to support machinery company build machines including endless cutting wire ,bearing,fiangeand so on.
Diamond Wire Loop——Diamond wire loop is a kind of flexibility cutting tool, Coating diamond crystals onto the steel wire surface, mainly used for cutting hard and brittle materials, such as: sapphire, ceramic, stone, silicon, etc.
