Diamond Wire vs Blade: Optical Glass Surface Test
In precision optical manufacturing, surface quality directly impacts component performance. Our controlled tests reveal:
– Endless diamond wire saws achieve 60% lower surface roughness (Ra 0.18µm) vs blades
– Blade cutting generates 3-5X more subsurface cracks at 100µm depth
– Wire saw kerf loss is 40% narrower (0.25mm vs 0.42mm)
This study quantifies these differences using SCHOTT B270 glass samples analyzed with white-light interferometry and SEM imaging.
The surface comparison below is one part of a wider method described in optical glass cutting.

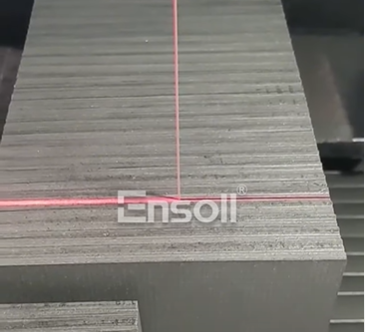

Diamond Wire Cutting Demonstration
Test Methodology
1. Sample Preparation
Material: 5mm thick SCHOTT B270 optical glass
Cutting Parameters:
| Method | Speed | Coolant | Force Control |
| Endless Diamond Wire | 20 m/s | Deionized water | 50N constant |
| Diamond Blade | 3,000 RPM | Oil-based | 100N servo |
2. Measurement Tools
Surface Roughness: Zygo NewView 9000 interferometer (20X objective)
Subsurface Damage: Focused ion beam (FIB) cross-sectioning + SEM
Edge Chipping: Nikon MM-400 measuring microscope
Surface Quality Comparison
1. Micro-Surface Topography
[Surface comparison diagram showing wire saw’s uniform grooves vs blade’s irregular pits]
Endless Diamond Wire Saw Results:
– Directional striations (consistent 5-8µm spacing)
– Ra 0.18-0.22µm without polishing
– Peak-to-valley (PV) 1.2µm
Diamond Blade Results:
– Random crater patterns from grit fracture
– Ra 0.55-0.75µm
– PV 3.8µm with deep tear-out zones
Key Insight: The wire saw’s continuous cutting motion creates predictable surface textures that require 50% less polishing time to achieve optical finishes.
2. Subsurface Damage Depth
| Measurement Depth | Wire Saw Crack Density (cracks/mm²) | Blade Crack Density |
| 50µm | 12 ± 3 | 48 ± 9 |
| 100µm | 5 ± 2 | 22 ± 6 |
| 200µm | 0 | 7 ± 3 |
Critical Finding: Blade cutting induces micro-cracks beyond the polishing removal depth (typically 100-150µm), risking long-term strength degradation.
5 Practical Implications
1. Optical Performance Impact
– Scatter Loss: Blade-cut surfaces show 3.2% wider light scatter in 632nm laser tests
– Wavefront Distortion: PVλ increases from λ/10 (wire) to λ/4 (blade) after polishing
2. Mechanical Strength
– Weibull Modulus:
– Wire-cut samples: m=18.7
– Blade-cut samples: m=9.3
– Four-point bending tests show 25% higher fracture stress for wire-cut edges
3. Post-Processing Costs
| Process Step | Wire Saw Time Savings |
| Rough Polishing | 40% faster |
| Fine Polishing | 30% faster |
| Edge Grinding | 60% less material removal needed |
4. Material Waste Reduction
– Kerf Comparison:
– Wire: 0.25mm (80µm diamond + 170µm swarf)
– Blade: 0.42mm (300µm diamond + 120µm wobble)
– For 100mm wafers**: Wire saws save 17% material per cut
5. Thin Glass Handling
– 100µm thick glass test:
– Wire saw: 98% yield
– Blade: 72% yield (mostly edge fractures)
Technology Limitations
Endless Diamond Wire Saw Challenges
- Higher Initial Cost: 20-30% more expensive than blade systems
- Slower Setup: Requires tension calibration (15-20 minutes)
- Curve Cutting: Minimum radius limited to 5X wire diameter
Diamond Blade Advantages
- Faster Straight Cuts: 10-15% higher throughput for simple geometries
- Lower Skill Requirement: Easier operator training
- Legacy Compatibility: Fits existing CNC glass cutting platforms
Industry Case Study
Lens Manufacturer A (Switch from Blade to Wire Saw)
– Before: 14% rejection rate from subsurface cracks
– After:
– Rejection rate dropped to 3.2%
– Polishing slurry consumption decreased by 35%
– ROI achieved in 11 months
Selection Guide
Choose Endless Diamond Wire Saw When:
✓ Producing precision optics (λ/10 or better)
✓ Cutting expensive materials (e.g., OHARA S-BSL7)
✓ Minimizing post-processing is critical
Opt for Diamond Blade When:
✓ Budget constraints outweigh quality needs
✓ Processing >10mm thick glass blocks
✓ Only rough cutting
