Precision Cutting of Ferrite Magnets: Guide

1. What Are Ferrite Magnets?

Ferrite magnets, also known as ceramic magnets, are a type of permanent magnet composed primarily of iron oxide (Fe₂O₃) combined with strontium or barium carbonate. They are sintered under high temperatures to form a hard, brittle ceramic material with moderate magnetic strength (0.2–0.4 Tesla).

Key Properties

– Cost-Effective: Cheaper than rare-earth magnets (NdFeB/SmCo)

– High Resistivity: Low electrical conductivity reduces eddy current losses

– Temperature Stability: Maintain performance up to 250°C

– Corrosion Resistance: Do not require coating like NdFeB

Applications

– Electronics: Speakers, sensors, and microwave devices

– Automotive: ABS sensors, electric motor components

– Industrial: Magnetic separators, holding systems

Due to their brittleness, ferrite magnets require specialized cutting methods to avoid chipping and cracking.

2.How Are Ferrite Magnets Processed?

Ferrite magnets are manufactured through sintering, producing blocks or discs that must be cut into precise shapes. Common machining methods include:

A. Diamond  Wire Loops (Traditional Method)

– Uses resin-bonded diamond wire loop wheels

– Suitable for simple shapes (blocks, discs)

– Limitations:

– Generates micro-cracks (depth: 50–100μm)

– Slow processing (5–10mm/min)

– High tool wear (wheel dressing required)

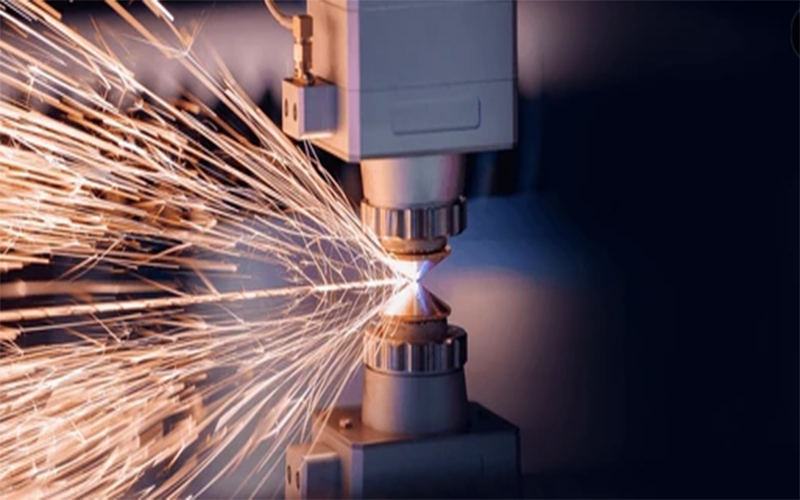

B. Laser Cutting

– CO₂ or fiber lasers vaporize material

– Advantages: No mechanical force, good for thin sheets (<3mm)

– Drawbacks:

– Heat-affected zone (HAZ) alters magnetic properties

– Limited to straight cuts (complex shapes difficult)

C. Waterjet Cutting

– High-pressure abrasive water (Garnet/SiC)

– Pros: No thermal damage, versatile for thick materials

– Cons:

– Rough edges (Ra >3μm) require secondary polishing

– High operating costs (abrasive consumption)



Diamond Wire Saw Cutting (Best Solution)

The diamond wire saw cutting machine uses a thin, diamond-coated wire (Ø0.1–0.3mm) to slice ferrite with minimal kerf loss.

Why It’s Superior

✔ Chip-Free Cutting – No edge fractures (Ra <0.5μm)

✔ Cold Process – No thermal stress or HAZ

✔ High Precision – Tolerances ±0.02mm

✔ Material Savings – Kerf width <0.2mm (vs. 1mm with grinding)

How It Works

1. Wire Motion: Continuous loop at 10–60m/min
2. Coolant: Prevents overheating (deionized water + additives)
3. CNC Control – Cuts complex shapes (arcs, slots, trapezoids)

Industry Adoption:

– 80% of Japanese ferrite manufacturers use diamond wire saws

– 30% lower production cost vs. grinding for high-volume runs

3. Choosing the Right Diamond Wire Saw Machine

For optimal ferrite cutting, consider:

Machine Specifications

– Wire Speed: Adjustable (10–80m/min for different thicknesses)

– Tension Control: Auto-adjustment (±1N) for consistent cuts

– Multi-Wire Systems: Cut 50–100 pieces simultaneously

Wire Selection

1. Standard Diamond Wire Loop

– Delivers ultra-fine surface finishes (Ra 0.2μm)

– Ideal for applications requiring mirror-quality edges

2. Enhanced Resin-Bonded Diamond Wire Loop

– Engineered for extended service life

– Optimized for cutting thicker material sections

– Maintains cutting precision throughout prolonged use

Applications in Production

– Speaker Magnets: Smooth edges improve sound quality

– Sensor Components: Precision slots for Hall-effect devices

– Custom Shapes: Trapezoidal/arc cuts for motors

Conclusion

Ferrite magnets demand precision cutting to maintain performance. While grinding and laser methods have limitations, diamond wire saw cutting machines deliver the best balance of accuracy, surface quality, and cost efficiency.



For manufacturers seeking zero-defect ferrite components, upgrading to diamond wire technology reduces waste by 20% and boosts productivity by 3×.



Need a cutting solution? [Contact us] for a free sample test with your ferrite material!
Compared with how to cut neodymium magnets, ferrite allows a higher feed rate, but chipping at the exit edge is still the defect to watch.

Frequently Asked Questions

What is the best way to cut ferrite magnets?

Diamond wire saw cutting. The thin diamond-coated wire (0.1-0.3 mm) grinds through the brittle ceramic with very low force, producing chip-free edges at Ra below 0.5 micrometers and tolerances around ±0.02 mm — without the micro-cracks of grinding or the heat damage of laser cutting.

Why do ferrite magnets chip during cutting?

Ferrite is a sintered ceramic with very low tensile strength. Rigid blades and grinding wheels concentrate mechanical stress at the cut edge, and the material fractures as the tool exits. Low-force abrasive micro-grinding with a diamond wire largely eliminates this failure mode.

Can you laser cut ferrite magnets?

Only thin sheets (under about 3 mm) and only for straight cuts. The laser’s heat-affected zone alters the magnetic properties near the cut, so for production parts a cold process like diamond wire saw cutting is preferred.

Does cutting affect ferrite’s magnetic performance?

Yes if the process adds heat or stress. Laser and hot grinding can alter properties near the cut; diamond wire saw cutting is a cold, coolant-controlled process, so the ferrite keeps its rated performance with no heat-affected zone.
