Silicon Wafer Cutting: Diamond Wire Saw Process Guide

In the world of precision manufacturing, few processes are as critical as slicing hard materials into thin, uniform wafers. Whether it’s silicon for microchips, ceramic substrates for electronics, or rare-earth magnets for industrial applications, the wafer saw process is the backbone of modern microfabrication.

Silicon wafer slicing — also called silicon wafer sawing or simply the wafer cutting process — is the production step that turns a grown monocrystalline ingot into the thin discs used for chips and solar cells. If you are asking how silicon wafers are cut, the short answer is a diamond wire loop running at 10–25 m/s, where wafer thickness and total thickness variation (TTV) are set by wire tension and feed rate. The same physics governs cutting silicon wafers for photovoltaics and for semiconductor substrates; only the thickness target and the tolerance for subsurface damage differ.

But the wafer saw process isn’t a single method. It includes techniques like diamond wire loop cutting, EDM wire cutting, and even compact table top cutter machines for R&D and small-batch production.

In this  guide, we’ll cover:

– What a wafer is (semiconductor basics)

– The wafer saw process using diamond wire loop technology

– EDM wire cutting as an alternative for conductive materials

– Table top cutter machines for laboratory and prototyping use

Let’s dive in：

1. What is a Wafer?

Before discussing how wafers are cut, we need to understand what a wafer actually is.

A wafer is a thin, flat disc of semiconductor material — most commonly silicon — on which microelectronic devices are built. Wafers serve as the substrate for integrated circuits (ICs), solar cells, LEDs, and MEMS (microelectromechanical systems).

Typical Wafer Sizes

Wafers have grown in diameter over decades:

– 1 inch to 2 inches (early 1960s)

– 4 inches (100mm), 6 inches (150mm), 8 inches (200mm)

– 12 inches (300mm) – industry standard today

– 18 inches (450mm) – emerging but rare

Thickness is typically between 500–800 microns, but after polishing and backgrinding, finished IC wafers can be as thin as 50–100 microns.

Why Precision Cutting Matters

A single wafer can yield thousands of individual chips (dies). If the cutting process (dicing) is inaccurate, you lose chips, reduce yield, and increase costs. That’s why the wafer saw process must be extremely precise — often within ±1–5 microns.

2. Wafer Saw Process (Diamond Wire Loop)

Now let’s focus on the core of our topic: the wafer saw process using a diamond wire loop.

Traditional vs. Diamond Wire Sawing

Historically, wafers were cut from ingots using inner-diameter (ID) blades — circular saws with diamond-impregnated rims. But ID blades have limitations:

– Wide kerf (material loss)

– Slow cutting speed

– Surface damage

Enter diamond wire sawing.

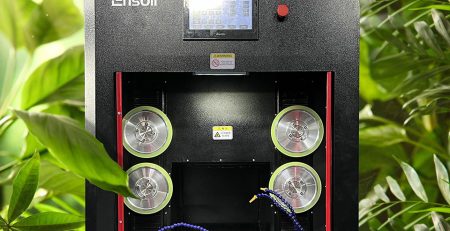

How Diamond Wire Loop Works

A diamond wire loop consists of a thin steel wire (typically 100–300 microns in diameter) electroplated or resin-bonded with diamond grit. The wire is formed into a continuous loop and driven by pulleys at high speed (10–25 m/s).

As the wire moves, the diamond grit grinds through the material via a three-body abrasion mechanism. Coolant (usually deionized water or oil-based fluid) removes debris and heat.

Key Advantages of Diamond Wire Loop for Wafer Sawing

Step-by-Step Wafer Saw Process (Ingot to Wafer)

1.Ingot Growth – Single-crystal silicon ingot is grown via Czochralski or Float Zone method.

2. Grinding – Ingot is ground to precise diameter.
3. Wire Sawing – Diamond wire loop slices the ingot into individual wafers.
4. Edge Rounding – Wafer edges are chamfered to prevent chipping.
5. Lapping – Removes saw marks and flattens the wafer.
6. Etching – Removes damaged surface layer.
7. Polishing – Creates mirror-like surface for lithography.

Applications Beyond Silicon

Diamond wire loop sawing isn’t only for silicon wafers. It’s also used for:

– Silicon carbide (SiC) – wide-bandgap semiconductor

– Gallium arsenide (GaAs) – RF and LED applications

– Sapphire – for LED substrates and watch crystals

– Ceramic substrates – alumina, zirconia

– Quartz and glass – optical and MEMS wafers

3. EDM Wire Cutting (A Complementary Technology)

While diamond wire sawing is excellent for non-conductive and hard materials, EDM wire cutting (Electrical Discharge Machining) offers a completely different mechanism.

What is EDM Wire Cutting?

EDM wire cutting uses a thin, electrically charged brass or copper wire to erode conductive materials through a series of rapid electrical sparks. The wire never touches the workpiece — instead, sparks jump across a small gap, melting and vaporizing tiny particles.

How It Works

• Wire electrode (0.05–3 mm diameter) is continuously fed from a spool.

• Deionized water acts as a dielectric fluid, flushing away debris and controlling sparks.

• CNC controls move the workpiece relative to the wire.

• Sparks occur thousands of times per second, gradually cutting through metal.

When to Use EDM Wire Cutting vs. Diamond Wire Sawing

Advantages of EDM Wire Cutting

• No mechanical contact → no stress or burrs

• Cuts extremely hard metals (HRC 60+)

• High precision (±1–2 microns)

• Can cut complex 2D shapes (not just straight slices)

Limitations

• Slow cutting speed compared to wire saw

• Only works on conductive materials

• Higher operating cost (wire, filters, dielectric fluid)

While EDM is rarely used to slice silicon ingots (silicon is only semi-conductive and EDM works poorly on high-resistivity Si), it is used for:

• Cutting metalized ceramic substrates

• Dicing copper-clad laminates

• Slicing tungsten, molybdenum, or Kovar parts used in semiconductor

4. Table Top Cutter Machine

Not every wafer or material cutting job requires a massive industrial saw. For R&D labs, universities, small foundries, and prototype shops, a table top cutter machine is the perfect solution.

Typical Features

• Compact footprint (fits on a lab bench)

• Adjustable cutting speed and feed rate

• Small cutting capacity (typically up to 50–100 mm diameter ingots or blocks)

• Integrated coolant system (recirculating or gravity-fed)

• Digital readout or CNC control (on high-end models)

• Advantages for R&D and Small-Batch Production
• Low cost – fraction of industrial wire saws

• Flexibility – cut silicon, ceramics, glass, PCBs, magnets, metals

• Quick setup – change materials in minutes

• Minimal waste – ideal for expensive materials like GaAs or SiC

1. Understanding Monocrystalline Silicon

Before diving into the cutting process, let’s briefly discuss monocrystalline silicon and why it requires specialized cutting techniques.

1.1 What is Monocrystalline Silicon?  （You can also click the link to learn more details via Wikipedia.）

Monocrystalline silicon is a highly pure form of silicon with a single, continuous crystal lattice structure. It is produced using the Czochralski (CZ) method or the Float Zone (FZ) method, resulting in cylindrical ingots.

1.2 Why Precision Cutting is Critical

– Semiconductor Industry: Silicon wafers must have ultra-smooth surfaces(nanometer-level roughness) for microchip fabrication.

-Photovoltaic Industry: Solar cells require thin, uniform wafers(typically 160-180µm) to maximize efficiency.

– Minimal Kerf Loss: Reducing material waste during cutting improves cost efficiency.

Traditional cutting methods like ID saws (inner diameter saws) and multi-wire slurry saws have been replaced by diamond wire saw cutting due to superior performance.

4. Challenges & Solutions in Diamond Wire Saw Cutting

Despite its advantages, diamond wire saw faces some challenges:

4.1 Wire Breakage & Wear

– Cause: Excessive tension, abrasive wear, or coolant failure.

– Solution: Real-time tension monitoring**, optimized diamond grit size, and proper coolant filtration.

4.2 Surface Micro-Cracks

– Cause: Brittle fracture during cutting.

– Solution: Controlled feed rate, post-cut etching, or annealing.

4.3 Wire Bow Effect

– Cause: Uneven wire tension leading to wavy cuts.

– Solution: Advanced wire guidance systems with dynamic tension control.

5.Applications of Diamond Wire Saw Cutting

5.1 Photovoltaic (PV) Industry

– Solar wafer production (Mono PERC, TOPCon, HJT cells).

– Thin-wafer cutting (below 150µm for next-gen high-efficiency cells).

5.2 Semiconductor Industry

– Silicon wafer dicing for IC manufacturing.

– Advanced packaging** (e.g., wafer-level packaging).

5.3 Other Applications

– LED sapphire substrate cutting.

– Hard material machining (SiC, quartz, ceramics).

6.Future Trends in Silicon Wafer Cutting

1. Thinner Wafers: Demand for sub-100µm wafers drives ultra-precision diamond wire saw advancements.
2. AI & Automation: Machine learning-based process optimization for higher yield.
3. Hybrid Cutting Methods: Combining laser pre-scoring + diamond wire saw for ultra-thin wafers.

Conclusion

The wafer saw process is a cornerstone of modern electronics manufacturing. From growing For conductive materials, EDM wire cutting offers a complementary non-contact method capable of slicing hardened steels, carbides, and superalloys with micron-level accuracy.

And for those working in R&D, prototyping, or small-scale production, a table top cutter machine provides an affordable, flexible entry point into high-precision cutting — without the floor space or budget of an industrial wire saw.

Whether you’re manufacturing 300mm silicon wafers for AI processors or cutting a small alumina substrate on a lab bench, understanding the strengths and limitations of diamond wire loop, EDM, and table top cutters will help you select the right tool for the job.a silicon ingot to slicing it into hundreds of thin wafers using a diamond wire loop, every step demands precision, cleanliness, and reliability.

Frequently Asked Questions

How are silicon wafers cut from an ingot?

The ingot is grown by the Czochralski or Float Zone method, ground to a precise diameter, then sliced by a diamond wire loop. After sawing, wafer edges are chamfered to prevent chipping, and the wafers are lapped and polished.

What is TTV in wafer cutting?

TTV (total thickness variation) is the difference between the thickest and thinnest points on a wafer. It is the headline metric for wafer sawing quality because downstream lithography needs a flat, uniform surface.

Why did diamond wire replace slurry sawing?

Fixed-diamond wire gives a narrower kerf, a cleaner process with no loose abrasive to manage, and more wafers per ingot. Slurry sawing wastes more silicon per cut and carries higher consumable and disposal costs.

What controls breakage when cutting thinner wafers?

Real-time tension monitoring, correctly sized diamond grit, and clean filtered coolant. As wafers drop below 150 µm, tension stability and feed control matter more than cutting speed.

What is the difference between diamond wire sawing and EDM wire cutting for wafers?

Diamond wire cuts non-conductive and hard materials with a 120–250 µm kerf at 2–10 mm/min and Ra 0.2–0.5 µm. EDM wire cutting only works on conductive materials, is slower at 0.5–3 mm/min, but produces a finer finish of Ra 0.05–0.2 µm.

What wire diameter is used for silicon wafer cutting?

Typically 100–300 µm steel core wire, carrying diamond grit in the 30–100 µm range, applied by electroplating or resin bonding. Thinner wire reduces kerf loss but needs tighter tension control.

How thin can silicon wafers be cut?

Production solar wafers are commonly 160–180 µm, next-generation cells are moving below 150 µm, and sub-100 µm wafers are the current development target. Each step down demands finer wire and tighter process control.

What causes wire bow, and how is it corrected?

Wire bow is a wavy cut caused by uneven wire tension across the cut. It is corrected with advanced wire guidance systems that apply dynamic tension control throughout the cut.
