Introduction to Magnetic Material Cutting
Magnetic materials like neodymium (NdFeB), samario cobalto (SmCo), ferrita, y el alnico requieren equipos de corte especializados para mantener su integridad estructural y sus propiedades magnéticas durante el procesamiento. A diferencia de los metales convencionales, Estos materiales presentan desafíos únicos que exigen soluciones de corte de precisión.
- Cutting magnetic materials demands equipment that handles four challenges at once: fragilidad, heat sensitivity, ±0.02 mm tolerances and minimal material waste.
- Compared with laser (heat-affected zone, <5 mm thickness), waterjet (abrasive contamination, taper) and abrasive saws (1-2 mm kerf, rough finish), diamond wire saw machines are the most complete solution.
- A modern machine like the ESG200-4T uses a 0.1-0.3 mm diamond wire loop at programmable 0.1-10 M/s, achieving ±0.005 mm positioning, Ra <0.2 micrometer finish and kerf loss as low as 0.15 milímetro.
- Typical payback is 12-18 months at medium volume, driven by 20-40% material savings and about 50% faster processing than conventional methods.
At Ensoll, we specialize in advanced magnetic material processing using our state-of-the-art ESG200-4T Máquina cortadora de sierra de hilo de diamante. Esta innovadora tecnología ha revolucionado la forma en que los fabricantes cortan componentes magnéticos sensibles mientras conservan sus propiedades críticas.
Challenges in Magnetic Material Cutting
Cutting magnetic materials presents several technical challenges that standard equipment cannot adequately address:
- Fragilidad: Most permanent magnets are extremely brittle and prone to cracking
- Heat Sensitivity: Excessive heat can demagnetize materials
- Precision Requirements: Many applications demand tolerances within ±0.02mm
- Material Waste: Conventional methods create significant material loss
Traditional cutting methods like laser cutting, waterjet cutting, or abrasive sawing often fail to meet these challenges effectively. This is where specialized equipment like sierras de hilo diamantado make the critical difference.
Types of Equipment for Magnetic Material Cutting
1. Diamond Wire Saw Cutting Machines (Most Advanced Solution)
Our flagship ESG200-4T diamond wire saw cutting machine represents the gold standard for magnetic material processing:
- Cutting Principle: Uses a continuous loop of diamond-impregnated wire (0.1-0.3mm diameter)
- Cutting Speed: Adjustable from 0.1-10 m/s based on material
- Precisión: Achieves ±0.01mm dimensional accuracy
- Surface Finish: Ra < 0.2μm without additional processing
- Minimum Kerf Loss: As little as 0.15mm material loss
Key Advantages:.
- No heat-affected zone
- Minimal microcracking
- Excellent edge quality
- Capable of complex shapes
- Suitable for all magnetic materials

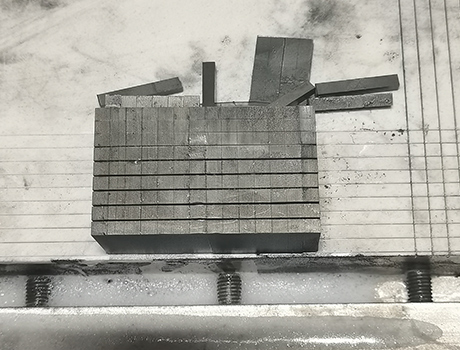

Cutting case display：
2. Laser Cutting Systems
While sometimes used, laser cutting presents limitations:
- Creates heat-affected zones that may degrade magnetic properties
- Limited to thinner materials (typically <5milímetro)
- Higher equipment and operating costs
- Potential for thermal distortion
3. Corte por chorro de agua
Waterjet systems offer some benefits but have significant drawbacks:
- Uses abrasive garnet that contaminates material
- Taper effect on thicker materials
- Slower cutting speeds
- Lower precision compared to wire saws
4. Conventional Abrasive Cutting
Traditional abrasive saws are still used but are becoming obsolete:
- High material loss (kerf width 1-2mm)
- Poor surface finish requiring secondary processing
- Thermal damage risk
- Limited to simple straight cuts
Why the ESG200-4T Diamond Wire Saw is Superior
Our ESG200-4T diamond wire saw cutting machine outperforms all alternatives for magnetic material processing:
Technical Specifications:
- Cutting Area: 200×200×200mm
- Diámetro del alambre: 0.1-0.3milímetro (customizable)
- Velocidad del cable: 0.1-10 m/s programmable
- Precisión de posicionamiento: ±0.005mm
- Repeatability: ±0.002mm
- Cutting Angle: 0-45° adjustable
- Automatización: Full CNC control with vision alignment
Unique Features:
- Active Wire Tension Control: Maintains consistent cutting performance
- Multi-axis Motion System: Enables complex 3D contours
- In-process Cooling: Specialized coolant prevents contamination
- Smart Monitoring: Real-time wire wear detection
- Material-Specific Presets: Optimized parameters for all magnetic materials
Applications Across Industries
The ESG200-4T serves diverse industries requiring precision-cut magnetic components:
1. Electric Vehicle Motors
- Rotor and stator segment cutting
- Traction motor magnet shaping
- Sensor ring fabrication
2. Renewable Energy
- Wind turbine generator magnets
- Hydroelectric power components
- Solar tracking system parts
3. Medical Technology
- MRI magnet fabrication
- Surgical instrument components
- Implantable device parts
4. Aerospace & Defense
- Guidance system components
- Satellite positioning magnets
- Radar system elements
5. Electrónica de consumo
- Speaker magnet production
- Vibration motor components
- Sensor manufacturing
Comparative Performance Analysis
| Parámetro | ESG200-4T Wire Saw | Corte por láser | Chorro de agua | Abrasive Saw |
| Precisión | ±0.01mm | ±0,05 mm | ±0.1mm | ±0.2mm |
| Heat Generation | None | Alta | Bajo | Medio |
| Material Waste | 0.15mm kerf | 0.2mm kerf | 1mm kerf | 1.5mm kerf |
| Surface Finish | Ra 0.2μm | Ra 1.2μm | Ra 3μm | Ra 5μm |
| Complex Shapes | Excelente | Good | Regular | Pobre |
| Operating Cost | $15/hour | $40/hour | $30/hour | $20/hour |
Cost-Benefit Analysis
While the ESG200-4T represents a significant capital investment, its operational advantages deliver rapid ROI:
- Ahorro de material: 20-40% reduction in material waste versus alternatives
- Labor Efficiency: 50% faster processing than conventional methods
- Quality Improvement: Near-zero rejection rates
- Flexibility: One system handles all magnetic materials
- Longevity: 10+ year service life with proper maintenance
Typical payback period: 12-18 months for medium-volume production
Maintenance and Operation
The ESG200-4T is designed for reliable, low-maintenance operation:
- Daily: Coolant level check, wire condition inspection
- Weekly: Guide roller inspection, tension system calibration
- Monthly: Full system diagnostics, motion system lubrication
- Annual: Comprehensive maintenance by Ensoll technicians
Our machines include:
- Remote monitoring capabilities
- Predictive maintenance alerts
- Online support portal
- Global service network
Why Choose Ensoll?
As the industry leader in magnetic material processing, Ensoll offers:
- Technical Expertise: 20+ years specializing in magnetic material
- Complete Solutions: Machines, tooling, consumables, and support
- Personalización: Tailored solutions for unique requirements
- Global Support: Service centers in 15 países
- Continuous Innovation: Regular technology updates
Customer Success Stories
Estudio de casos 1: EV Motor Manufacturer
- Challenge: Needed to reduce magnet waste in rotor production
- Solución:ESG200-4T implementation
- Results: 32% Ahorro de material, 18% productivity increase
Estudio de casos 2: Medical Device Company
- Challenge: Required contamination-free cutting for MRI components
- Solución: ESG200-4T with medical-grade coolant system
- Results: Zero contamination, 100% quality approval rate
Estudio de casos 3: Aerospace Supplier
- Challenge: Complex-shaped sensor magnets with tight tolerances
- Solución: ESG200-4T with multi-axis capability
- Results: Achieved ±0.008mm precision consistently
Future of Magnetic Material Cutting
Emerging trends that reinforce the value of diamond wire saw technology:
- Thinner Magnets: Demand for <0.5mm thick components
- Complex Geometries: 3D-shaped magnets for advanced applications
- Material Diversity: New composite magnetic materials
- Industry 4.0 Integration: Smart, connected cutting systems
The ESG200-4T is future-proofed to address these evolving requirements through:
- Software-upgradable control systems
- Modular design for new capabilities
- Compatibility with emerging materials
Conclusión
For manufacturers requiring precision cutting of magnetic materials, diamond wire saw technology – particularly the ESG200-4T from Ensoll – represents the optimal solution. It outperforms all alternatives in precision, Ahorro de material, and quality while eliminating thermal damage concerns.
Machine choice is only half the equation — the other half is process, covered in cómo cortar imanes de neodimio.
Preguntas Frecuentes
What equipment is used to cut magnetic materials?
Four main types: las máquinas de corte con sierra de alambre de diamante (the most advanced option), laser cutting systems, waterjet cutters and conventional abrasive saws. For brittle magnets like NdFeB, SmCo and ferrite, diamond wire saw machines deliver the best combination of precision, surface quality and material savings.
What precision can a diamond wire saw machine achieve on magnets?
Machines such as the ESG200-4T hold ±0.01 mm dimensional accuracy with ±0.002 mm repeatability, Ra below 0.2 micrometers and kerf loss as low as 0.15 mm — with no heat-affected zone, so magnetic properties are preserved.
Why is laser cutting risky for magnetic materials?
Laser cutting creates a heat-affected zone that can degrade or demagnetize the material near the cut, it is limited to thinner sections (typically under 5 milímetro), and it carries higher equipment and operating costs than wire sawing.
How do you choose a magnetic material cutting machine?
Match the machine to the material and volume: check wire diameter range and speed programmability, tension control stability, cutting envelope, sistema de refrigeración, and whether the supplier offers material-specific parameter presets. Also compare kerf loss and operating cost per hour — wire saws run around $15/hour versus $30-40 for waterjet and laser.
