Découpe de feuilles de verre BG38 avec fil diamanté en boucle: 5 Données de test en mm

Abstrait: This application report documents a high-precision straight-slicing test on BG38
glass sheet supplied by a European customer. The workpiece measured 86 mm x 60 mm x 1 mm and was cut into strips
de 5 mm x 60 mm x 1 mm on an ESO-GM gantry diamond wire loop cutting machine, using
cutting oil as the cooling medium and a fully coated diamond wire. Measured results: variation d'épaisseur totale
(TTV) 0.003-0.020 mm (en moyenne 0.014 mm), thickness tolerance ±0.027 mm, surface roughness Ra 0.63-0.76 μm,
and maximum edge chipping 5.1-6.5 μm. Matching the machine structure, the oil cutting method and the process
parameters to the brittle behaviour of BG38 glass kept material removal stable and held strip dimensional accuracy
and cut-surface quality within a workable range.

Sample test for a European customer | Diamond wire loop cutting process

Overview of the BG38 Glass Sheet Slicing Test

This test was carried out on BG38 glass sheet supplied by a European customer, with high-precision straight
la découpe comme exigence principale. BG38 appartient à la famille des verres durs, cassants: la dureté est assez élevée,
la fragilité est prononcée et la ténacité à la fracture est faible. Sous l'abrasion continue des grains de diamant, découpage
la charge et l'accumulation locale de chaleur peuvent concentrer le stress à l'intérieur du matériau, ce qui provoque l'écaillage, micro-fissures, une
surface de coupe irrégulière et des écarts dimensionnels de la bande apparaissent. Le travail s'est donc concentré sur l'adaptation de la stabilité de la machine,
le refroidissement et la lubrification, et les paramètres de coupe, afin que la fluctuation de charge et les effets thermiques pendant la coupe
restent faibles et que les dimensions de la bande et la qualité de la surface de coupe respectent les exigences fixées pour
découpe optique du verre.

En raison de ce que le verre BG38 exige en termes de stabilité de coupe, de précision dimensionnelle et d'intégrité des arêtes, Ensoll a appliqué
une solution de fil diamant adaptée à l'usinage du verre. Côté machine, a dedicated gantry diamond wire loop
cutting machine was used, whose rigidity and running stability give the workpiece a firm clamping base and the wire
a steady path, cutting down the effect of machine vibration and motion error on the cutting trajectory and on strip
dimensions. On the consumable side, a diamond wire suited to glass keeps the abrasive grains removing material at a
steady rate, so wire wear does not show up as a change in strip dimensions. On the cooling side, cutting oil
lubricates and cools the contact zone between wire and glass, which holds friction heat and its effect on the cut
face and edge in check. Wire running speed and feed rate were then adjusted against the properties of the BG38 sheet
and the target strip size, keeping the cutting load in a suitable band and reducing the local damage and edge
breakage that an excessive instantaneous load causes. Matching machine, un fil, cooling conditions and parameters as
one set kept the slicing process stable and brought strip dimensional accuracy, la constance de l'épaisseur, cut-face
quality and edge integrity under control — a workable process basis for high-precision straight slicing of
BG38 glass sheet.

1. Test Object: Basic Information

• Material: BG38 glass sheet
• Dureté: environ MH 6.5
• Dimensions de la pièce: 86 mm x 60 mm x 1 mm
• Cut dimensions: 5 mm x 60 mm x 1 mm

2. Sélection de la machine et du fil

Machine type: ESO-GM. Given the brittleness of BG38 glass and the high-precision straight
slicing requirement, Ensoll selected the ESO-GM diamond wire saw, the gantry machine
suited to glass machining. It holds running stability and trajectory accuracy through the cut, reduces the effect of
machine vibration and cutting-load fluctuation on machining quality, limits the chipping, micro-cracking and
écart dimensionnel que le chargement inégal provoquerait autrement, et améliore ainsi la précision dimensionnelle, surface de coupe
qualité et intégrité des arêtes dans les bandes BG38.

• Type de liquide de refroidissement: cutting oil. L'huile de coupe est utilisée comme milieu de refroidissement et de lubrification. Elle
  améliore la dissipation de la chaleur et la lubrification dans la zone de coupe, réduit la friction et l'accumulation de chaleur lors de la coupe,
  et réduit la variation thermique et locale des contraintes auxquelles la tôle BG38 est soumise. Cela réduit le risque d'éclats,
  micro-fissures et dommages de la surface de coupe, ce qui aide à la stabilité dimensionnelle, la qualité de surface et l'intégrité des arêtes.

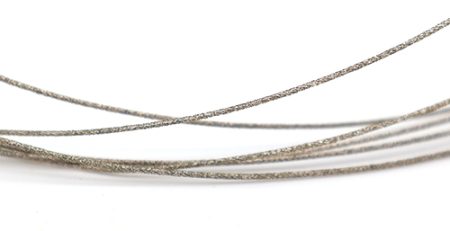

• Wire type: entièrement revêtue. Un fil diamanté entièrement revêtu augmente la résistance du liant entre les grains
  et le noyau en acier et maintient la distribution uniforme des grains, ainsi le fil enlève le matériau de manière continue et régulière
  pendant la coupe. It reduces the effect of grain pull-out and wire wear on the cutting state, which limits
  dimensional variation and edge damage in BG38 slicing.

3. Méthode de découpe et avantages de la machine

Gantry cutting method. The gantry structure gives the machine high overall rigidity and running
la stabilité, and the top-down vertical feed helps keep the boucle de fil de diamant on a stable
path, reducing the effect of load variation on kerf position and dimensional accuracy in BG38 strips. The machine
also carries a mist extraction system that clears the oil mist produced during cutting, keeping the work zone clean
and the cutting area in good condition.

Système de contrôle intelligent de la tension. The system adjusts wire tension in real time according to
the machining state and supports both constant-tension and variable-tension modes, so the wire runs steadily
pendant la coupe. Stable tension reduces trajectory fluctuation and limits the uneven local loading and wire-break
risk that tension variation brings, which cuts down the chipping, micro-cracks and dimensional deviation seen in
BG38 strips and improves consistency across the batch.

Breakpoint resume. If the wire breaks or the machine stops abnormally, the system records the
current cutting position and the associated running state. After a wire change the cut resumes from that position,
which reduces the dimensional deviation and material loss that re-positioning and repeat cutting cause, keeps strip
processing continuous, and limits kerf quality variation.

High-rigidity one-piece cast iron frame. The one-piece cast iron frame raises overall stiffness
and vibration resistance, lowering the effect of structural vibration and long-term micro-deformation on the wire
path. For a hard, brittle material such as BG38 glass, that rigidity reduces vibration and load fluctuation during
the cut, maintient le trajet du fil et l'état de coupe stables, and limits chipping, micro-cracks and kerf surface damage
caused by local load changes. It gives the dimensional accuracy and kerf quality of precision slicing a stable
machine basis.

4. Paramètres et méthode de refroidissement

Paramètre	Valeur
Diamètre du fil (mm)	0.25 x 1880
Vitesse de déplacement du fil (mm/min)	3
Largeur de coupe (mm)	1
Tension du fil de coupe (N)	68
Vitesse du fil (m/s)	24
Temps de flexion du fil (s)	60
Charge de coupe (N·m)	18

5. Efficacité et résultats de coupe

5.1 Données de test TTV (mm)

TTV (Variation totale de l’épaisseur) was measured with a nine-point grid, méthode d'épaisseur à double sonde sur une
table à ventouse, applied to BG38 strips produced by diamond wire loop cutting. The strips measured
5 mm x 60 mm x 1 mm, avec une épaisseur nominale de 5 mm. Before measurement the instrument was thermally stabilised
and calibrated with a standard thickness block to reduce zero drift and systematic error. Après un nettoyage sans poussière,
each sample was centred on the vacuum chuck and held by negative pressure, so that position shift, warping and local
deformation during measurement had less effect on the thickness readings. Thickness data were then collected in
sequence at the preset nine grid positions, and the difference between the largest and smallest reading across those
points was taken as the TTV of that sample, which is used to evaluate the thickness uniformity and machining
consistency of BG38 strips. The procedure follows the same nine-point method used in our
H-K9L optical glass cutting test.

Échantillon	Nine-point thickness readings (mm)	Tmax	Tmin	TTV
S01	4.962, 4.969, 4.974 / 4.968, 4.972, 4.978 / 4.974, 4.981, 4.978	4.981	4.962	0.019
S02	4.982, 4.983, 4.984 / 4.983, 4.984, 4.985 / 4.984, 4.983, 4.985	4.985	4.982	0.003
S03	4.995, 4.998, 4.999 / 4.997, 5.001, 5.004 / 5.002, 5.010, 5.015	5.015	4.995	0.020

Évaluation: Three BG38 strips were tested for thickness uniformity with the nine-point method.
le TTV variait de 0.003 À 0.020 mm avec une moyenne de 0.014 mm. Sample S02 showed the smallest variation, à
0.003 mm. Overall the strip thickness distribution is fairly stable, which indicates good thickness control
through the diamond wire loop process.

5.2 Données de tolérance d'épaisseur (mm)

Thickness tolerance was measured by the same nine-point grid method, avec 5.000 mm as the nominal thickness. Le
deviation of each measured point from nominal was calculated, et le maximum d'écart positif, maximum negative
deviation and overall thickness tolerance were collated, to assess the dimensional accuracy and machining
consistency of the BG38 strips.

Échantillon	Épaisseur moyenne (mm)	Déviation d'épaisseur (mm)
S01	4.973	-0.027
S02	4.984	-0.016
S03	5.002	+0.002
Écart positif maximal	+0.002	+0.002
Écart négatif maximal	-0.027	-0.027
Tolérance d'épaisseur	±0.027	±0.027

Évaluation: Avec 5.000 mm as the nominal thickness, the three BG38 strips averaged 4.973, 4.984
et 5.002 mm, corresponding to thickness deviations of -0.027, -0.016 et +0.002 mm. The maximum positive deviation
was +0.002 mm, the maximum negative deviation -0.027 mm, and the overall thickness tolerance ±0.027 mm. Samples S01
and S02 sat slightly below nominal while S03 came in marginally above it; the spread between samples is small, which
indicates even material removal through the cut and good thickness consistency and dimensional control in the BG38
bandes.

5.3 Surface Roughness Ra Data (μm)

Rugosité de surface (Ra) was measured to ISO 4287 with a stylus profiler. Three representative positions were
profiled on the cut face of each BG38 strip — centre, mid-left and mid-right — and Ra was calculated at
each position to assess surface quality after diamond wire loop cutting.

Échantillon	Ra-1	Ra-2	Ra-3	Ra moyen
S01	0.68	0.72	0.70	0.70
S02	0.61	0.65	0.63	0.63
S03	0.74	0.78	0.76	0.76

Évaluation: Three BG38 strips were measured for surface roughness by the three-point method.
Average Ra ranged from 0.63 À 0.76 μm, with little difference between measuring positions. That indicates a broadly
uniform cut face and a stable wire running and material-removal process.

5.4 Données sur l’ébréchure des bords (μm)

Chipping was measured by optical imaging on a toolmaker’s microscope to quantify edge defects on the BG38 strips.
Sample edges were cleaned before measurement, and the instrument magnification and measuring scale were calibrated.
The edge regions were then examined under the microscope, recognisable chips were located and measured, and the
defect size at each point was recorded. The largest chip on a strip was taken as the main index, giving an
assessment of edge integrity and machining quality after cutting BG38 glass.

Échantillon	Position 1	Position 2	Position 3	Position 4	Ébréchure maximale
S01	4.8	5.6	5.1	6.2	6.2
S02	3.9	4.7	4.3	5.1	5.1
S03	5.0	5.8	5.4	6.5	6.5

Évaluation: Three BG38 strips were inspected for edge chipping by the four-point method. Defect
sizes were generally small, with maximum chipping between 5.1 et 6.5 μm and little difference between measuring
points and between samples. That indicates a stable cutting state through the diamond wire loop process and good
edge integrity on the strips.

6. Conclusion

The high-precision slicing of BG38 glass sheet in this test produced good results, mainly because the dedicated
gantry cutting machine, the oil cutting method and the process parameters were matched as one set. Glass is a
classic hard, brittle material: la dureté est assez élevée, la fragilité est prononcée et la ténacité à la fracture est faible,
and during diamond wire loop cutting the material is easily affected by local cutting load and heat build-up, which
produces chipping, micro-fissures, an uneven cut face and strip dimensional deviation. Aimed at the machining
behaviour of glass and the requirement for high-precision straight slicing, this work therefore adjusted machine
selection, cutting method and process parameters in a targeted way, holding strip dimensional accuracy and
cut-surface quality in check while keeping the cutting process stable.

First, machine selection. Given what glass sheet slicing demands in machine rigidity, motion
stability and cutting accuracy, a dedicated gantry diamond wire loop cutting machine was selected. The gantry
structure provides good overall rigidity and running stability, which gives the workpiece firm clamping and the wire
a reliable mechanical basis for steady running. The top-down vertical feed helps hold the cutting trajectory stable
and reduces the effect of machine vibration, motion error and load variation on cut position and dimensional
exactitude. Stable feed and motion control also narrow the cutting-load variation, so the glass is removed under
comparatively steady conditions, which lowers the risk of local chipping and strip dimensional deviation and gives
high-precision glass sheet slicing a stable machine basis.

Deuxièmement, cutting method. Given the properties of the material, oil cutting was used, with cutting
oil as the cooling and lubricating medium. Cutting oil improves lubrication and heat dissipation in the contact zone
between wire and glass, lowering friction and heat build-up through the cut and reducing the effect of local
temperature rise and thermal stress on the glass and the cut section. Good cooling and lubrication also help hold
the cutting zone in a steady state and reduce the cutting fluctuation that higher friction or concentrated heat
would cause, so cut-face damage, edge breakage and surface defects become less likely. That is a necessary
condition for keeping glass slicing quality stable.

Third, paramètres du processus. Given the brittle behaviour of glass and the target strip size, un fil
running speed and feed rate were matched accordingly. Parameters were set to keep the wire running stably and
material removal even, avoiding a feed rate so high that the cutting load rises, and avoiding a parameter
combination that causes local heating, stress concentration and brittle fracture. Targeted adjustment of the
cutting parameters kept material removal comparatively steady and, while meeting machining efficiency, reduced
impact and load fluctuation through the cut, which improved strip thickness consistency, cut-face quality and edge
integrity.

Taken together, the results for strip dimensional accuracy, tolérance d'épaisseur, Rugosité (Ra) et
cut-edge quality show that, through coordinated matching of a dedicated gantry cutting machine, oil cutting and
suitable cutting parameters, diamond wire loop cutting meets the requirements of high-precision straight slicing for
glass sheet. The machined samples performed well in dimensional accuracy, la constance de l'épaisseur, la qualité de la surface coupée
and edge integrity, which indicates that matching machine structure, cooling and lubrication method and process
parameters to the hard, brittle character of glass improves material removal and process stability, and provides a
process reference for high-precision straight slicing of glass-type brittle materials.

Questions fréquemment posées

Can a diamond wire loop cut BG38 glass sheet into 5 mm strips?

Oui. In this test an 86 mm x 60 mm x 1 mm BG38 sheet was sliced into strips of 5 mm x 60 mm x 1 mm on an ESO-GM
gantry machine. Measured TTV was 0.003 À 0.020 mm avec une moyenne de 0.014 mm, thickness tolerance was
±0.027 mm, and maximum edge chipping was 5.1 À 6.5 μm, which is a workable basis for precision glass strips.

Why is cutting oil used instead of water for BG38 glass?

Cutting oil lubricates and cools the contact zone between wire and glass. In this test it improved heat
dissipation in the cutting zone and lowered friction and heat build-up through the cut, which reduced the thermal
and local stress variation in the BG38 sheet and lowered the risk of chipping, micro-fissures et dommages de la surface de coupe. Le
machine carries a mist extraction system to clear the oil mist produced during the cut.

What surface quality can be expected when cutting BG38 glass?

La rugosité de surface a été mesurée selon ISO 4287 with a stylus profiler at three positions per strip. Average Ra ranged
de 0.63 À 0.76 μm with little variation between measuring positions, and maximum edge chipping measured by optical
microscopy was 5.1 À 6.5 μm, indicating a uniform cut face with good edge integrity.

Why did the BG38 strips come out slightly thin?

Avec 5.000 mm as the nominal thickness, the three strips averaged 4.973, 4.984 et 5.002 mm, so two of them ran
thin by 0.016 À 0.027 mm. That is a systematic offset rather than random scatter, and it can be corrected directly
through cutting parameters and dimensional compensation on the next run.

Where can I find more process data on diamond wire loop cutting?

Ensoll publishes comparable test data for other glass and hard-to-cut materials, including an H-K9L optical glass
cutting test and a guide to the cost structure of optical glass manufacturing and cutting. For general process
questions, see the FAQ sur la technologie de découpe à fil diamanté en boucle.

Technical content reviewed by the Ensoll engineering team – a diamond wire loop manufacturer with 10+ des années d'expérience en production.
