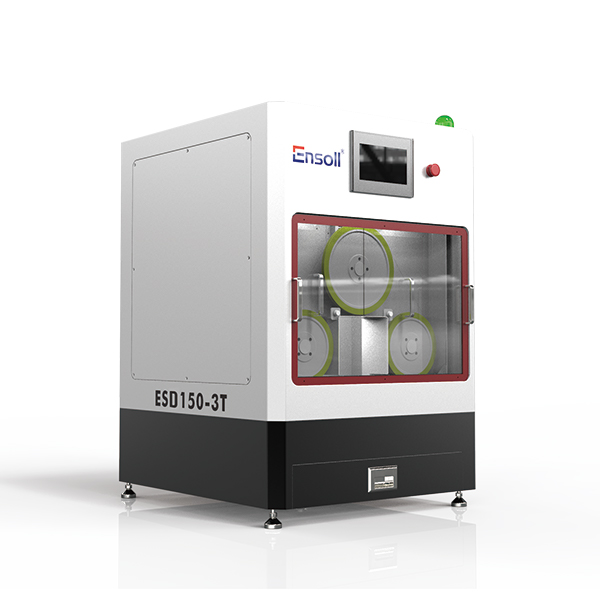

ESD150-3T 다이아몬드 와이어 톱 절단기

정밀하고 까다로운 첨단 재료 제조 세계에서, 절단이 모든 것이다. Whether you’re working with silicon for semiconductors, sapphire for LED substrates, Schott optical glass for high-end lenses, or a myriad of other hard and brittle materials, the quality of the cut directly defines the quality of the final product. Traditional cutting methods often introduce micro-cracks, chipping, and significant material loss—known as kerf loss—leading to wasted resources and compromised component integrity.



The quest for a perfect cut has been the driving force behind our research and development. Today, we are proud to announce a monumental leap forward: 이 ESD150-3T 다이아몬드 와이어 톱 절단기. This third-generation machine is engineered not merely to meet industry standards but to shatter them, 이 어려운 재료에 대한 비할 데 없는 정밀도 제공, revolutionary cooling, 가장 까다로운 재료를 위한 뛰어난 다재다능성.

실험실과 소형 부품용, 벤치탑 대안은 데스크탑 다이아몬드 와이어 절단기, 작업물 크기를 포기하는 대신 공간과 가격을 절약할 수 있음.

단단하고 깨지기 쉬운 재료의 굴하지 않는 도전



단단하고 깨지기 쉬운 재료는 현대 기술의 핵심을 형성함. 모든 컴퓨터의 실리콘 웨이퍼부터 스마트폰 화면과 항공 우주 광학용 특수 유리까지, 이들의 고유한 특성은 필수불가결하게 만듦. 그렇지만, 이러한 특성—뛰어난 경도와 낮은 파괴인성—이 바로 손상을 피하면서 가공을 매우 어렵게 만듦.



일반적인 도전 과제에는:



• 하부 손상 (SSD): 표면 아래로 전파되는 미세 균열, 재료를 심각하게 약화시킴.
• 조각 및 모서리 부서짐: 절단 시 입구와 출구 지점에서의 파손, ruining the workpiece.
• Thermal Stress: Heat generated during cutting causes thermal expansion, leading to cracks and alterations in material properties.
• Kerf Loss: The width of material turned into dust by the cutting tool. In valuable materials, this waste represents a significant cost.

Meet the ESD150-3T: A Paradigm of Precision Engineering



The ESD150-3T is more than a machine; it is a sophisticated system designed for perfection. Building on the legacy of our proven diamond wire technology, this new model incorporates groundbreaking advancements that set a new benchmark for the industry.

Key Feature 1: Unmatched Cutting Precision for Zero Kerf Loss & Low-Damage Slicing



At the heart of the ESD150-3T is an ultra-fine, diamond-coated wire that moves in a continuous loop. This system allows for cuts of astonishing accuracy.



• 거의 제로 케르프 손실: 다이아몬드 와이어의 얇기는 제거되는 재료의 양을 최소화합니다. 이는 단결정 실리콘이나 대형 광학 결정 블룸과 같은 고가 원자재에서 수율을 극대화하는 데 매우 중요합니다. 한때 폐기물이었던 것이 이제는 사용 가능한 부품이 됩니다, 비용 효율성을 극적으로 향상시킵니다.
• 극히 낮은 손상 절단: ESD150-3T는 제어된 원리로 작동합니다, 다방향 연마. 높은 충격력을 주는 블레이드 톱과 달리, 다이아몬드 와이어는 재료를 부드럽게 연삭합니다, virtually eliminating subsurface damage and edge chipping. 그 결과 사후 가공이 거의 필요 없는 우수한 표면 마감이 나타나, 시간과 비용을 모두 절약할 수 있습니다.
• 우수한 표면 마감: 쇼트 광학 유리 및 저손상 결정 절단과 같은 재료에서 거울처럼 매끄러운 절단을 경험하세요, 다음 생산 단계에 바로 사용할 수 있습니다.



Key Feature 2: 혁신적인 워터폴 냉각 시스템™



열은 정밀 절단의 적. 이 문제를 해결하려면, 우리는 혁신적인 냉각 솔루션을 개발하고 특허를 받았습니다: 워터폴 냉각 시스템™.



전통적인 분무 또는 안개 냉각은 일관성이 없을 수 있습니다. 와이어와 가공물의 일부 영역은 과냉각될 수 있으며, 다른 영역은 냉각제가 부족하여, 핫스팟, 열 기울기, 및 잠재적인 와이어 파손을 초래합니다.



우리의 워터폴 냉각 시스템은 열 관리의 정의를 새롭게 합니다:



• 포괄적 & 균일한 커버리지: 단편적인 분사 대신에, 시스템은 연속적이고, 커튼처럼 흐르는 냉각제를 생성하여 전체 와이어 루프와 가공물을 감쌉니다. 이것은 모든 다이아몬드 연마제와 절단의 모든 부분이 균일하고 일관되게 냉각되도록 보장합니다.
• 향상된 절단 효율 & 와이어 수명: 열을 효과적으로 분산시킴으로써, the system prevents the softening of the wire core and the degradation of the diamond particles. This not only maintains optimal cutting performance but also significantly extends the operational life of the diamond wire loop, reducing your consumable costs.
• Effective Swarf Removal: The powerful, laminar flow of the coolant efficiently flushes away cutting debris (swarf). This prevents particles from clogging the cut, which can cause friction, heat buildup, and wire deviation, ensuring a consistently straight and clean cut from start to finish.



Unrivaled Versatility: One Machine, Endless Applications



The ESD150-3T is engineered to be the single most versatile cutting tool in your lab or production facility.



• 실리콘 커팅: Produce high-quality silicon wafers and ingots with minimal TTV (총 두께 변동) and no micro-cracks, essential for high-yield semiconductor production.
• Schott Optical Glass & Advanced Ceramics: Achieve flawless, chip-free cuts on the most delicate optical glasses and incredibly hard technical ceramics, perfect for the aerospace, defense, and medical industries.
• Magnetic Materials Cutting: Cleanly slice through rare-earth magnets and ferrites without damaging their delicate magnetic domains.
• Low-Damage Crystal Slicing: From sapphire and quartz to specialized research crystals, the ESD150-3T handles them with care, preserving their intrinsic properties.
• Composite Materials & CVD Substrates: Tackle new-age materials with confidence, knowing the machine can handle their anisotropic and often challenging structures.



ESD150-3T vs. Traditional Cutting Methods: A Clear Advantage



To understand the transformative impact of the ESD150-3T, let’s compare it to conventional technologies.



• Inner Diameter (ID) Saws: ID saws are slow and limited by the diameter of the blade. The ESD150-3T offers continuous, uninterrupted cutting for larger workpieces and provides a much better surface finish.
• Blade Saws (Circular/Band): These methods impart high vibrational and mechanical stress, leading to significant chipping, kerf loss, and subsurface damage. Their cooling is often inadequate. The ESD150-3T’s gentle, cool, and precise process is superior in every aspect for hard, brittle materials.
• 레이저 커팅: While precise, laser cutting generates intense localized heat, causing thermal stress and the formation of a heat-affected zone (헤이즈) that alters material properties. The ESD150-3T is a cold-cutting process, leaving the material’s microstructure intact.
• 와이어 EDM (방전 가공): EDM only works with electrically conductive materials. The ESD150-3T is material-agnostic, capable of cutting any hard, brittle material, conductive or not.



Technical Specifications at a Glance



• 모델: ESD150-3T Diamond Wire Saw
• Cutting Wire: Diamond coated wire loop (Various grit sizes available)
• Workpiece Capacity: Customizable based on application (Please inquire)
• 제어 시스템: Precision CNC with user-friendly touchscreen interface
• Cooling System: Patented Waterfall Cooling System™
• Software: Advanced software for recipe management, real-time monitoring, and diagnostics
• 응용 프로그램: 규소, 잔, 도예, 결정, 합성물, 자기 재료



Trusted by the Best: Join Our 500+ Well-Known Partners



When you invest in an Ensoll machine, you are not just buying a piece of equipment; you are joining a global community of innovators. Our technology is trusted by over 500 well-known partners worldwide, from leading research universities and national laboratories to Fortune 500 manufacturers in the semiconductor, 광자학, and electronics industries. They rely on our diamond wire saws for their most critical cutting applications because they deliver consistent, repeatable, and exceptional results.



결론: The Future of Cutting is Here



The ESD150-3T 다이아몬드 와이어 톱 절단기 represents the culmination of years of dedicated engineering and a deep understanding of our clients’ needs. With its industry-leading precision, revolutionary Waterfall Cooling System™, and unmatched versatility, it is poised to become the new gold standard for processing hard and brittle materials.



It is more than an upgrade; it is a transformation of your manufacturing capabilities, enabling you to produce higher quality components, 폐기물 감소, lower total operating costs, and accelerate your time to market.



Are you ready to revolutionize your cutting process?



Contact us today to schedule a personalized consultation and see the ESD150-3T in action with a live demonstration on your specific material samples. Discover why Ensoll is the name trusted by the world’s leading manufacturers.

FAQ Section

1분기: What is the typical kerf loss with the ESD150-3T?

A: Kerf loss is dependent on the wire diameter, but it is significantly less than traditional methods, often achieving near-zero kerf loss, which maximizes material yield.



2분기: Can the machine be automated for high-volume production?

A: Absolutely. The ESD150-3T is designed with automation in mind and can be integrated into production lines for continuous, high-volume slicing with minimal operator intervention.



3분기: How does the Waterfall Cooling System impact consumable costs?

A: By maintaining a consistent, low temperature, the system drastically reduces thermal wear on the diamond wire, leading to a longer wire life and lower long-term consumable costs.



4분기: What technical support and training do you provide?

A: We provide comprehensive installation, operational training, and ongoing technical support to ensure you achieve optimal performance from your machine from day one.

Ensoll 엔지니어링 팀의 검토.
