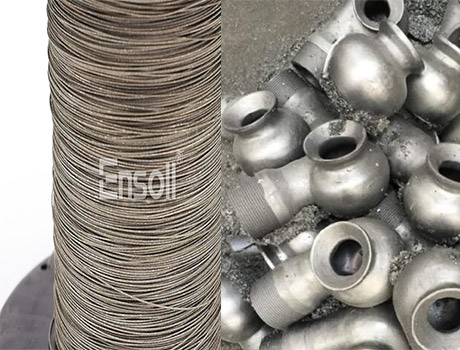

Sierra de hilo de diamante sin fin para carburo de silicio

Carburo de silicio (Sic), Conocido por su excepcional dureza y durabilidad, es ampliamente utilizado en diversas industrias. To effectively cut this super hard material, a cutting tool with superior performance is essential. En años recientes, los Sierra de alambre de diamante sin fin has emerged as the optimal choice for precision cutting of silicon carbide. En esta entrada del blog, we will explore the hardness and characteristics of diamond wire saws, understand the properties of silicon carbide, delve into the reasons behind using diamond wire saws for cutting silicon carbide, discuss the latest research in the field, and provide information on how to contact us for further inquiries.

Comprendiendo la Dureza y Características de la Sierra de Cable de Diamante

• Las sierras de cable de diamante son conocidas por su excepcional dureza, lo que las hace la herramienta de corte preferida para una amplia gama de materiales, incluido el carburo de silicio. Estas herramientas de corte consisten en diamantes de grado industrial incrustados en una matriz metálica, creando una superficie de corte altamente duradera y eficiente.
• La dureza de las sierras de alambre de diamante se atribuye a las partículas de diamante incrustadas en el alambre. Los diamantes son conocidos por su excepcional dureza, ocupando el lugar de material natural más duro. Cuando se incorporan en una sierra de alambre, los diamantes proporcionan un filo de corte superior que puede penetrar y moler sin esfuerzo diversos materiales.

Comprendiendo la Dureza y las Características del Carburo de Silicio

• Carburo de silicio (Sic) is a compound renowned for its exceptional hardness and unique set of characteristics, making it a highly sought-after material in various industries.
• One of the defining features of silicon carbide is its remarkable hardness. On the Mohs scale, which measures the relative hardness of minerals, silicon carbide ranks among the hardest materials, surpassed only by diamonds. This exceptional hardness stems from the strong covalent bonds formed between silicon and carbon atoms in its crystal lattice structure.
• In addition to its hardness, silicon carbide exhibits excellent thermal conductivity, even at high temperatures. This thermal conductivity makes it an excellent choice for applications involving heat dissipation, such as heat sinks and thermal management systems. Silicon carbide’s ability to efficiently transfer heat allows for improved performance and reliability in high-temperature environments.
• The unique combination of hardness, Conductividad térmica, chemical inertness, and wide bandgap makes silicon carbide an invaluable material in various cutting-edge applications. Its utilization spans across industries such as automotive, electrónica, energía, and aerospace, where superior performance and reliability are paramount.

Desafíos al cortar carburo de silicio

1. Dureza y fragilidad extremas:
Con una dureza Mohs de aproximadamente 9.5, solo superada por el diamante y el nitruro de boro, El SiC es un material extremadamente duro y frágil. Las herramientas de corte convencionales se desgastan rápidamente, lo que conduce a una baja rentabilidad. Más críticamente, la fragilidad lo hace muy propenso a microfracturas, astillado de bordes, y daños subsuperficiales durante el corte mecánico. Esta capa de daño puede degradar severamente el rendimiento y la fiabilidad del dispositivo semiconductor final.

2. Baja eficiencia de corte y alto desgaste de la herramienta:
Usar herramientas de diamante (como hilo de diamante o hojas) es casi obligatorio. Sin embargo, incluso los abrasivos de diamante experimentan un desgaste sustancial al cortar SiC, lo que lleva a una disminución de las tasas de corte con el tiempo, aumento de la generación de calor, y mayores costos de consumibles. El proceso a menudo requiere múltiples pasos (desbaste y acabado) para lograr la integridad superficial deseada, reduciendo aún más el rendimiento total.

3. Demandas de ultra alta precisión y calidad superficial:
Los obleas de semiconductores requieren una precisión geométrica excepcional (planicidad a nivel de nanómetro y uniformidad de grosor) y una superficie libre de daños, ultra lisa. Cualquier microgrieta o tensión subsuperficial introducida durante el corte debe minimizarse, ya que pueden propagarse durante los pasos posteriores de molienda y pulido, causando la rotura de obleas o dispositivos defectuosos. Lograr esto mientras se mantiene un alto rendimiento es un gran obstáculo.

4. Gestión Térmica y Control de Estrés:
El proceso de corte genera un calor localizado significativo. La alta conductividad térmica del SiC ayuda, pero si no se maneja adecuadamente, el estrés térmico puede exacerbar las grietas o alterar las propiedades del material. La refrigeración efectiva (a menudo utilizando refrigerantes especializados) y el control preciso de los parámetros de corte son cruciales para prevenir daños térmicos.

5. Alto Costo del Procesamiento:
La combinación de herramientas de diamante costosas, velocidades de corte lentas, la necesidad de equipos sofisticados (como sierras de múltiples hilos o sistemas asistidos por láser), y estrictos entornos de sala limpia contribuye a costos de fabricación muy altos para obleas de SiC. Esto sigue siendo un factor clave que limita su adopción más amplia.

Why Use Diamond Wire Saw for Cutting Silicon Carbide

When it comes to corte de carburo de silicio, the utilization of diamond wire saws offers numerous advantages and benefits. Let’s explore the reasons why diamond wire saws are the preferred choice for cutting this challenging material:

• Superior Hardness and Abrasive Properties: Diamond wire saws incorporate industrial-grade diamonds, which are renowned for their exceptional hardness and abrasive properties. The hardness of diamonds allows them to effectively grind through the hard silicon carbide material, ensuring efficient cutting with minimal tool wear.
• Precise and Thin Kerf Width: Diamond wire saws produce cuts with a remarkably thin kerf width. The thin kerf minimizes material wastage, optimizing the utilization of silicon carbide and reducing costs in the production process. This precision is particularly crucial in industries where maximizing material yield is essential.
• Reduced Material Loss: The continuous looped design of the diamond wire saw ensures a smooth cutting motion, minimizing material loss during the cutting process. This feature is advantageous when working with expensive or limited quantities of silicon carbide, as it enables efficient use of the material.
• Enhanced Surface Finish: Diamond wire saws provide excellent surface finish quality on the cut surfaces of silicon carbide. The precise cutting action and the fine grit of the diamond particles result in smooth and clean cut surfaces, reducing the need for additional post-cutting processing steps.
• Extended Tool Life: The exceptional hardness and durability of diamond wire saws contribute to their extended tool life. These cutting tools can withstand the demands of cutting hard materials like silicon carbide for prolonged periods, reducing the frequency of tool replacements and associated costs.
• Versatility for Various Shapes and Sizes: Diamond wire saws offer versatility in terms of cutting various shapes and sizes of silicon carbide material. Whether it’s large blocks, thin wafers, or intricate shapes, diamond wire saws can be customized to meet specific cutting requirements, providing flexibility in manufacturing processes.
• Efficient and Productive Cutting Process: Diamond wire saws enable high-speed cutting processes, resulting in increased productivity. The continuous cutting motion and the ability to adjust cutting parameters, such as wire tension and speed, allow for efficient and optimized cutting operations.

Presentación de videos：

Latest Research in the Field of Silicon Carbide Cutting:

Ensoll Introducing the world’s first and only Diamond Spool Wire with exclusive coating technology!

• Experience a significant boost in wire longevity with our revolutionary solution, surpassing the capabilities of normal spool wire. Our innovative technology extends the lifespan of the wire by at least 2-3 veces, providing you with enhanced cutting performance and reducing the frequency of wire changes.
• Leave behind the inconvenience of frequent wire changes and embrace a groundbreaking era of cutting performance in the realm of super hard material cutting. Our cutting-edge solution delivers revolutionary capabilities, providing unparalleled precision and efficiency for even the most challenging cutting tasks.
• Introducing Ensoll Spool Diamond Wire, a true game-changer meticulously crafted to conquer the most demanding cutting jobs with unrivaled precision and efficiency. This wire is engineered with unparalleled durability and cutting-edge technology, poised to redefine the benchmarks of long-line cutting operations.

Conclusión:

El Hilo diamantado sin fin saw has emerged as the ultimate cutting tool for silicon carbide, thanks to its exceptional hardness, durabilidad, and precision. Its ability to effectively cut through this challenging material has revolutionized various industries. As research in this field continues, we remain committed to staying at the forefront of cutting-edge technology and providing cutting solutions that empower businesses worldwide.Contact us now.

Preguntas Frecuentes

¿Cuál es la mejor herramienta para cortar carburo de silicio??

An endless diamond wire saw. It removes material without a heat-affected zone and with a far narrower kerf than any blade.

Por qué es difícil cortar carburo de silicio?

Mohs hardness around 9.2-9.5 combined with brittleness: mechanical force causes chipping while laser heat causes micro-cracking.

¿El corte con láser daña el SiC??

sí. La ablación con láser deja una zona afectada por el calor y una capa reelaborada que debe ser lijada, adding both cost and yield loss.

What surface finish can diamond wire achieve on SiC?

With fine wire and stable tension, sub-micron Ra is achievable — often reducing or eliminating the lapping step.
