光学ガラス: Manufacturing, 費用 & 切断

When you look through a camera lens, a microscope, a pair of binoculars, or even the viewfinder of a sniper rifle, you are looking through optical glass. But not all clear glass is optical glass.

The glass in your window is cheap. The glass in a telescope lens can cost more than a used car.

それで, what makes optical glass so special? Why is it so expensive? And how do manufacturers cut this precious material without wasting half of it?

This guide answers all of those questions—and introduces the cutting technology that saves optical glass from the scrap bin.

Chapter 1: What Is Optical Glass?

Optical glass is a specially formulated type of glass designed to transmit light with minimal absorption, scattering, or distortion. Unlike ordinary soda-lime glass (window glass), optical glass has precisely controlled refractive index, dispersion, and transmittance properties.

Getting a blank out of that glass without losing half of it is a machine question, covered in our ダイアモンドワイヤーソー切断機 overview.

簡単に言えば: ordinary glass lets light through, but it bends, blurs, and reflects some of it. Optical glass bends light exactly where it needs to go, with almost no loss.

Key Characteristics of Optical Glass:

Chapter 2: Which Glasses Are Called Optical Glass?

Not every transparent material qualifies as optical glass. The term specifically refers to glasses used in optical elements such as lenses, プリズム, beam splitters, filters, and windows for scientific instruments.

Infrared crystals belong to the same family of problems – see the chipping data in our note on precision ZnSe cutting.

Here are the main categories:

1. Crown Glass (Low Dispersion)

Crown glass has a low refractive index (around 1.52) and low dispersion. It is commonly used for simple lenses and microscope slides. BK7 is the most famous crown glass.

2. Flint Glass (High Dispersion)

Flint glass contains lead oxide or other additives, giving it a high refractive index (1.57–1.75) and high dispersion. It is used in combination with crown glass to correct chromatic aberration in camera lenses.

3. Lanthanum Glass (High Refractive Index, Low Dispersion)

Lanthanum oxide replaces some of the silica, creating glass with high refraction but low dispersion. This is the secret behind modern high-performance camera lenses.

4. Phosphate Glass

Used for high-power laser applications. It has excellent thermal stability but is softer and more difficult to manufacture.

5. Fused Silica (Pure SiO2)

Technically not a “グラス” in the traditional sense (it has no additives), fused silica has extremely low thermal expansion and high UV transmittance. It is used in space telescopes and semiconductor lithography.

Silicon itself is sliced to comparable tolerances, and the parameters are documented under silicon wafer cutting.

6. Colored Optical Glass

Used for filters and signal lenses. The color comes from precise additions of metal oxides like cobalt (blue), ネオジム (purple-pink), or didymium (orange-absorbing).

概要: If a glass is formulated, melted, annealed, and polished specifically to control how it interacts with light, it is called optical glass. If it comes from a window factory, it is not.

Chapter 3: How Is Optical Glass Made?

Manufacturing optical glass is a slow, 正確, and expensive process. Here is the step-by-step journey from raw powder to lens blank.

歩 1: Raw Material Selection

Pure silica sand (シオ2) is the base. But pure sand alone does not make optical glass. Manufacturers add precise amounts of:

– Boron oxide (for low dispersion)

– Lead oxide (for high refractive index)

– Lanthanum oxide (for high performance)

– Arsenic or antimony (to eliminate bubbles)

Impurities are measured in parts per million. A single grain of the wrong mineral can ruin an entire melt.

歩 2: Melting (The Difficult Part)

The raw batch is heated to 1300°C–1600°C in platinum or ceramic crucibles. Platinum is often used because it does not contaminate the glass.

The melt must be stirred continuously—sometimes for days—to eliminate striae (threads of different compositions). Any variation in chemistry creates visible distortions in the final lens.

歩 3: Refining (Removing Bubbles)

The molten glass is held at high temperature for hours to allow bubbles to rise to the surface. For bubble-free optical glass, this step can take 24 hours or more.

歩 4: Homogenization

Special stirring mechanisms mix the glass to ensure every cubic millimeter has exactly the same refractive index. A difference of 0.0001 in refractive index is enough to reject an entire batch.

歩 5: Annealing (The Long Wait)

The glass is cooled extremely slowly—sometimes over weeks—in a controlled annealing lehr. This removes internal stresses. If cooled too quickly, the glass will shatter when cut or ground.

Large telescope mirror blanks can take months to anneal. The famous 200-inch Hale Telescope mirror at Palomar Observatory took nearly one year to cool.

歩 6: Shaping and Cutting

Once annealed, the glass is cut into blocks, strips, or near-net shapes. This is where waste reduction becomes critical—which we will cover in Chapter 5.

The waste arithmetic at this step is the same one that governs cutting alumina ceramics.

歩 7: Grinding and Polishing

The cut glass is ground to rough shape, then fine-ground, then polished to a surface accuracy measured in wavelengths of light (nanometers). A typical lens surface is polished to within 20 nanometers of perfection.

Chapter 4: Why Is Optical Glass So Expensive?

If you have ever priced a replacement lens for a camera or microscope, you know optical glass costs a fortune. Here is why.

Reason 1: Raw Material Purity

Ordinary glass uses cheap sand. Optical glass uses ultra-pure silica and rare additives like lanthanum, niobium, or tantalum. Some raw materials cost hundreds of dollars per kilogram.

Reason 2: Platinum Crucibles

Many optical glasses are melted in platinum crucibles to avoid contamination. Platinum costs roughly $30 per gram—30 times the price of silver.

Reason 3: Slow Production

A float glass factory produces tons of window glass per hour. An optical glass melting furnace might produce a few hundred kilograms per week. The annealing process alone can take weeks or months.

Reason 4: Low Yields

Even with perfect processes, a percentage of every melt is rejected due to bubbles, striae, or refractive index variations. For high-end glasses, the rejection rate can exceed 50%.

Reason 5: Precision Cutting and Finishing

Shaping a lens blank requires diamond tools, skilled labor, and hours of polishing time. A single camera lens element might require eight hours of polishing.

Much of that polishing time is really damage removal, which a dedicated 光学ガラス切断機 reduces at the cutting step.

Reason 6: Small Batch Sizes

Window glass is made in factories that run 24/7/365. Optical glass is often made in batches of a few hundred kilograms—or even a few kilograms for specialty glasses. Small batches mean high per-unit costs.

Putting It in Perspective:

Chapter 5: Processing Optical Glass – How to Minimize Waste

Now we arrive at the most practical question: How do you cut and shape optical glass without wasting half of it?

Optical glass is expensive—often $100–$2,000 per kilogram. Every millimeter of waste is money thrown away. Traditional cutting methods like diamond blades, abrasive wheels, or even laser cutting introduce problems:

We ran that comparison on a brittle semiconductor in our analysis of laser cutting vs diamond wire saw.

– Diamond blades create a wide kerf (thick cut), wasting material

– Abrasive saws generate heat, causing micro-cracks and internal stress

– Laser cutting creates a heat-affected zone that ruins optical properties

– Waterjet cutting embeds abrasive particles into the glass surface

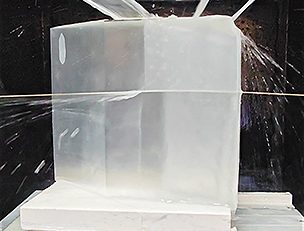

The Solution: ダイヤモンドワイヤーループ 切断

Enter ダイヤモンドワイヤーループ technology—the most efficient, low-waste method for cutting optical glass, 結晶, and other brittle optical materials.

What Is a Diamond Wire Loop?

NS ダイヤモンドワイヤーループ is an endless steel wire electroplated with industrial diamond grit. Unlike traditional wire saws that spool thousands of meters of wire back and forth, a diamond wire loop is a continuous loop—typically 2–10 meters in circumference—that moves in a single high-speed direction (40–80 m/s).

Machines are built around either one loop or many parallel strands; the trade-offs are set out in our comparison of single-wire and multi-wire diamond wire cutting.

As the loop spins, the diamond grit grinds through the glass with minimal force, minimal heat, and an extremely narrow kerf.

Why Diamond Wire Loop Cutting Minimizes Waste

Additional Benefits for Optical Glass Cutting

1. No Subsurface Damage

Diamond blades create a fractured layer beneath the cut surface. This damage must be ground away, adding time and material loss. Diamond wire loop cutting produces virtually no subsurface damage, saving hours of post-processing.

The same subsurface-damage argument decides the method for silicon carbide cutting.

2. Cuts Curves and Complex Shapes

Unlike a straight diamond blade, the flexible diamond wire loop can cut curves, radii, と不規則な形状. This is essential for prototyping and specialty optics.

3. Dry or Wet Operation

For optical glass, a small amount of coolant or water drip keeps the cut clean and dust-free. The ESO-GM supports both dry and wet cutting.

Both wet and dry modes are built into the ESO-GM diamond wire loop saw.

4. Low Maintenance

The ESO-GM has no complex spooling mechanisms, no wire guides to replace, and no tension rollers to adjust. It is reliable, simple, and built for daily use.

Chapter 6: Comparing Cutting Methods for Optical Glass

For expensive optical glass, diamond wire loop is the clear winner.

How Diamond Wire Saw Cutting Machines Ensure Crack-Free Results

Unlike conventional methods, diamond wire saw cutting machines use a thin, diamond-coated wire (typically 0.1–0.3mm in diameter) running at high speed under controlled tension. This unique cutting mechanism provides several key advantages for optical glass:

1. Ultra-Low Subsurface Damage

– Traditional diamond blades create micro-fractures due to high-impact cutting.

– Laser cutting generates heat-affected zones (ハズ), leading to stress-induced cracks.

– Diamond wire saws use a gentle abrasive action, producing near-zero subsurface cracks—critical for high-performance optics.

2. Superior Surface Finish (Ra < 0.2µm)

– The fine-grit diamond wire ensures a mirror-like edge, reducing the need for extensive polishing.

– Ideal for lenses, プリズム, and precision optics where surface roughness must be minimized.

3. No Thermal Distortion (Cold Cutting Process)

– Laser and waterjet cutting generate heat, risking stress birefringence and material warping.

– Diamond wire saws operate at room temperature, preserving the glass’s structural integrity.

4. Minimal Kerf Loss (As Low as 0.15mm)

– Saves expensive optical glass material, improving yield and reducing costs.

– Perfect for wafer-level optics and micro-optics arrays where material conservation is crucial.

結論: Cut Smart, Save Money

光学ガラスとは? It is precision-engineered glass designed to control light with extreme accuracy. Which glasses are called optical glass? Crown, flint, lanthanum, phosphate, fused silica, and specialty filter glasses. How is it made? Through slow, careful melting, refining, and annealing—often taking weeks or months. Why is it so expensive? Raw material purity, platinum crucibles, slow production, low yields, and precise finishing all drive up costs.

And finally: How do you process optical glass while minimizing waste?

The answer is diamond wire loop cutting—specifically with the ESO-GM Diamond Wire Loop Cutting Machine. With an ultra-narrow kerf, cool cutting action, and smooth surface finish, the ESO-GM maximizes yield from expensive optical glass blocks.

If you are cutting optical glass worth hundreds or thousands of dollars per kilogram, every millimeter saved is money in your pocket. The ESO-GM delivers those savings—cut after cut, day after day.

Frequently Asked Questions

光学ガラスとは?

A glass formulated for predictable optical behaviour — defined refractive index, dispersion and transmission, with tight limits on bubbles, striae and inclusions. Common families include crown glass, flint glass, lanthanum glass, phosphate glass and fused silica.

Why is optical glass expensive?

Mostly yield. Raw material purity, platinum crucibles, slow melting and long annealing cycles, low yields, precision cutting and finishing, and small batch sizes all add cost before volume economies can apply.

What is the best way to cut optical glass?

ダイヤモンドワイヤーループ切断. The wire applies low, constant force with continuous coolant, so it avoids the micro-fractures of blade sawing and the heat-affected zone of laser cutting.

Can optical glass be cut with a regular glass cutter?

A wheel cutter scores and snaps straight lines in flat sheet, but it cannot produce the curved, internal or tight-tolerance cuts optical components need, and the snap leaves a stressed, uneven edge.

How do you cut optical glass without cracking it?

Keep cutting force low and constant with a diamond wire, run continuous coolant, and control the feed rate. Most cracks initiate at the exit edge, so supporting the workpiece through the end of the cut matters as much as the cutting parameters.

Why does optical glass crack when machined?

Thermal shock and mechanical shock. Laser cutting generates a heat-affected zone that stresses the glass, while blade sawing applies high-impact force; both initiate cracks that propagate through a brittle material.

Is a diamond wire saw better than a blade for optical glass?

Yes for precision work. Diamond blades create micro-fractures through high-impact cutting, while diamond wire uses gentle abrasive action that leaves near-zero subsurface damage and a kerf as narrow as 0.15 ミリメートル.

Does optical glass cutting need coolant?

はい. Coolant removes heat that would otherwise cause thermal shock cracking, flushes abrasive slurry out of the kerf, and helps produce the mirror-like edge that reduces downstream polishing.

Technical content reviewed by the Ensoll engineering team — a diamond wire loop manufacturer with 10+ years of production experience.
